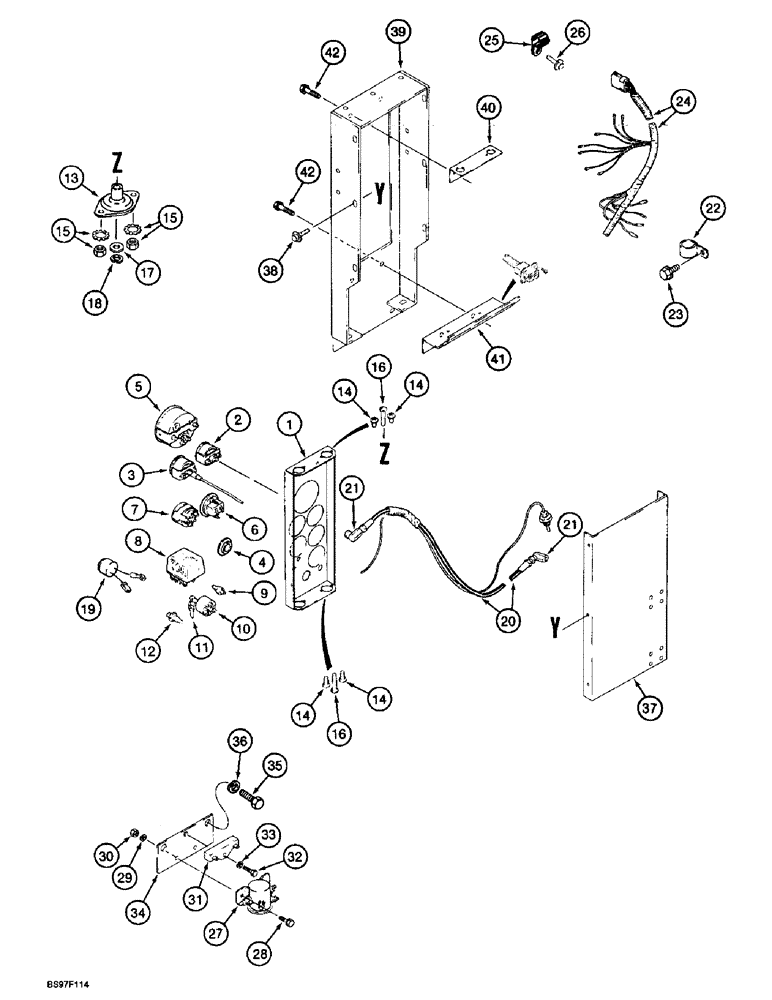

Запчасти Case IH 6591TA (4-04) - INSTRUMENT PANEL

239506A1

PANEL

ASSEMBLY - instrument, Does Not Inc. 37, 39

1шт.

1

283982A1

PANEL

- instrument, blank

1шт.

2

1347691C1

GAUGE

- pressure, engine oil

1шт.

3

1347693C1

GAUGE

- coolant temperature

1шт.

4

102783A1

COVER

- instrument panel hole

1шт.

5

1347690C1

TACHOMETER

- engine speed

1шт.

6

D53047

GAUGE

HOURMETER - engine

1шт.

7

1347695C1

VOLTMETER

GAUGE - volt meter

1шт.

8

102787A1

KIT

SWITCH - magnetic

1шт.

9

1347699C1

BUTTON

- emergency stop

1шт.

10

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, engine start

1шт.

11

A77313

SET OF 2 KEYS

KEY - set of two, ignition, engine start

1шт.

12

1347753C1

HOLDER

- fuse

1шт.

13

1347700C1

MOUNTING PARTS

MOUNT - shock, panel

4шт.

14

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

- machine, pan Phillips, No. 6 NC x 3/8 inch

8шт.

15

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

8шт.

16

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

- machine, pan Phillips, No. 8 NC x 1-1/4 inch

4шт.

17

495-21019

WASHER,#8

4шт.

18

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4шт.

19

182381A1

KIT

DIODE - electrical

1шт.

19a

240512A1

HARNESS

- internal wiring, instrument panel, not shown

1шт.

20

283983A1

HOSE,45.00"

- Oil pressure, Engine 45.00"

1шт.

21

283995A1

UNION

ELBOW - 90 degree, special, 1/8 x 1/8 inch PT (1) for hose to cylinder block oil gallery and (1) for hose to engine oil pressure gauge

2шт.

22

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Use to hold item 24 wiring harness 5/8", Insul, 3/8" Bolt

1шт.

23

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 20 mm, use to fasten item 22 clamp to top left hole in cylinder head

1шт.

24

283717A1

HARNESS

- external wiring, instrument panel

1шт.

25

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

- 12.7 mm, insulated, use to hold item 24 wiring harness to upper front side of instrument panel support

1шт.

26

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

1шт.

27

1347697C1

RELAY

- starter switch, mounted on item 34

1шт.

28

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

31

107558C1

RESISTOR

- mounted on item 34 bracket

1шт.

32

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

283572A1

BRACKET

- mounting, starter relay, mounted on right-hand side of cylinder block

1шт.

35

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

36

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

37

248950A1

PANEL

COVER - instrument panel, rear

1шт.

38

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

BOLT, Hex Flg, #10-32 x 1/2

6шт.

39

248949A1

PANEL

SUPPORT - hood and instrument panel, rear, left-hand

1шт.

40

281682A1

BRACKET

- instrument panel, upper

1шт.

41

248952A1

BRACKET

- instrument panel, lower

1шт.

42

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.
