Запчасти Case IH 6591TA (3-20) - THROTTLE CONTROL

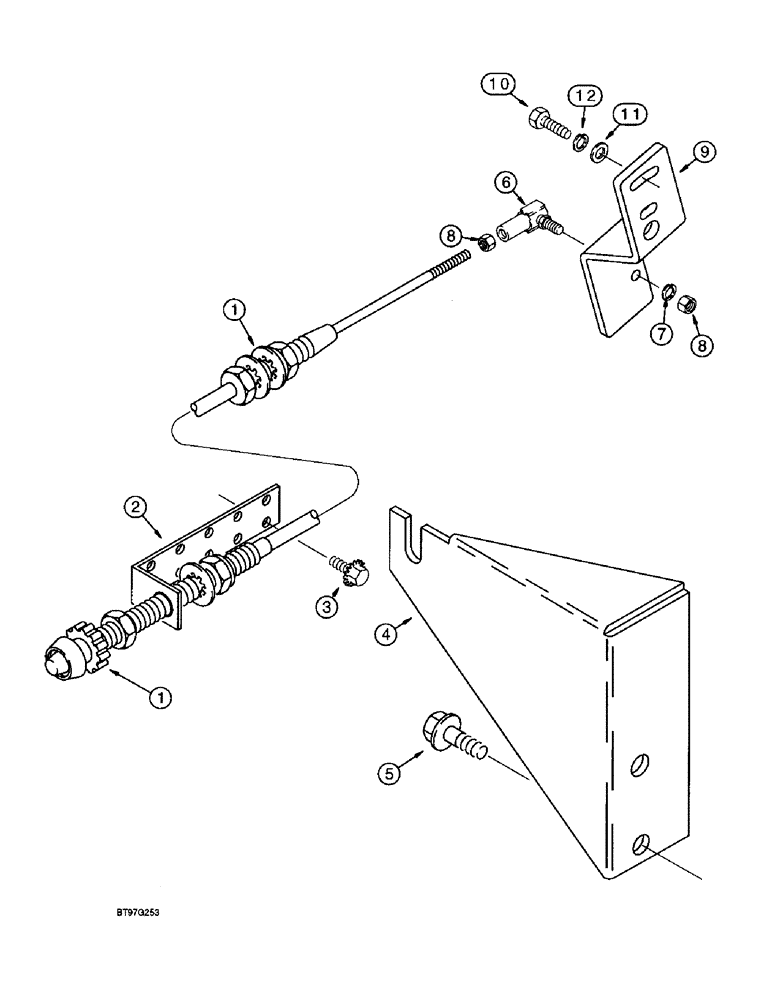

Схема запчастей Case IH 6591TA - (3-20) - THROTTLE CONTROL
8
1
8
3
4
10
1
9
7
12
5
11
2
6

Артикул

Название

Примечание

Количество

1

248831A1

CABLE

- control, throttle

1шт.

If 248831a1(this is for a 4 cylinder) is to short use a 248832A1 cwh cam 7/7/99

1шт.

2

102406A1

BRACKET

- mounting, throttle cable

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

4

239295A1

BRACKET

- mounting, throttle cable, at engine

1шт.

5

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

2шт.

6

310484C91

BALL JOINT

JOINT - ball

1шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

225-14210

NUT,#10-32

2шт.

9

1289365C1

SUPPORT

BRACKET - throttle cable to injection pump

1шт.

10

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

11

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

Выбрано товаров: 13
