(3-12) - ANEROID SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH 6591TA (3-12) - ANEROID SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE

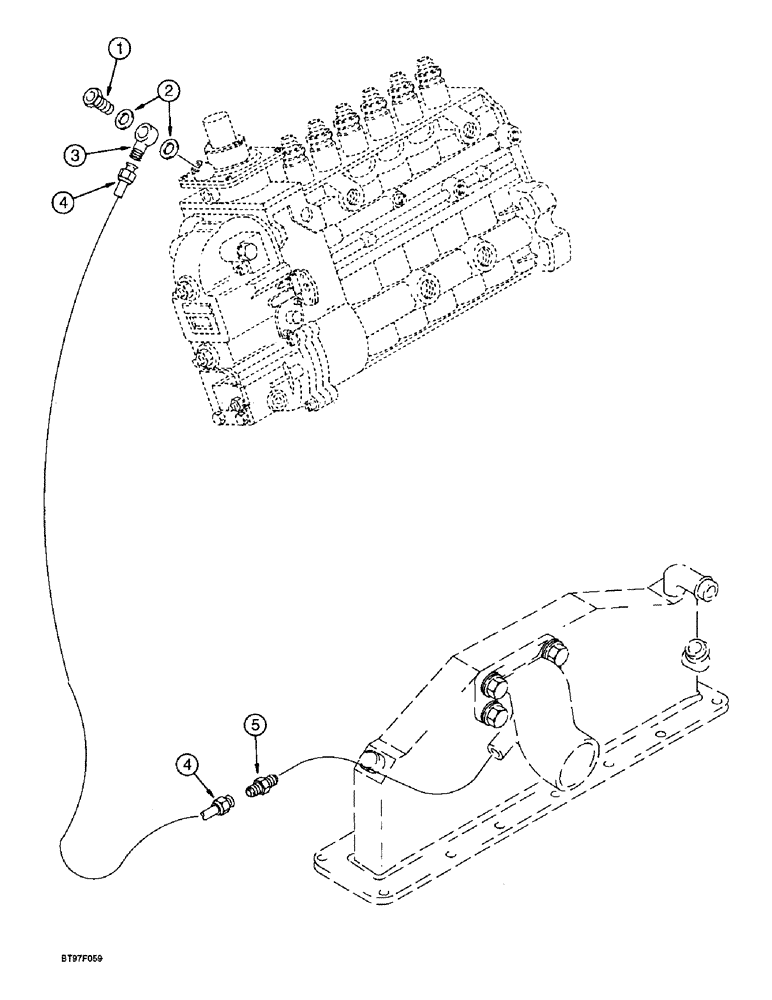

Схема запчастей Case IH 6591TA - (3-12) - ANEROID SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE
4
1
2
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

2

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

3

J919644

FITTING

CONNECTOR - banjo

1шт.

4

J928530

TUBE

- air fuel control

1шт.

5

222-21

FITTING,7/16"-24 x 1/8" NPTF

Compression, Remove and discard nut during assembly 7/16"-24 x 1/8" NPTF

1шт.
