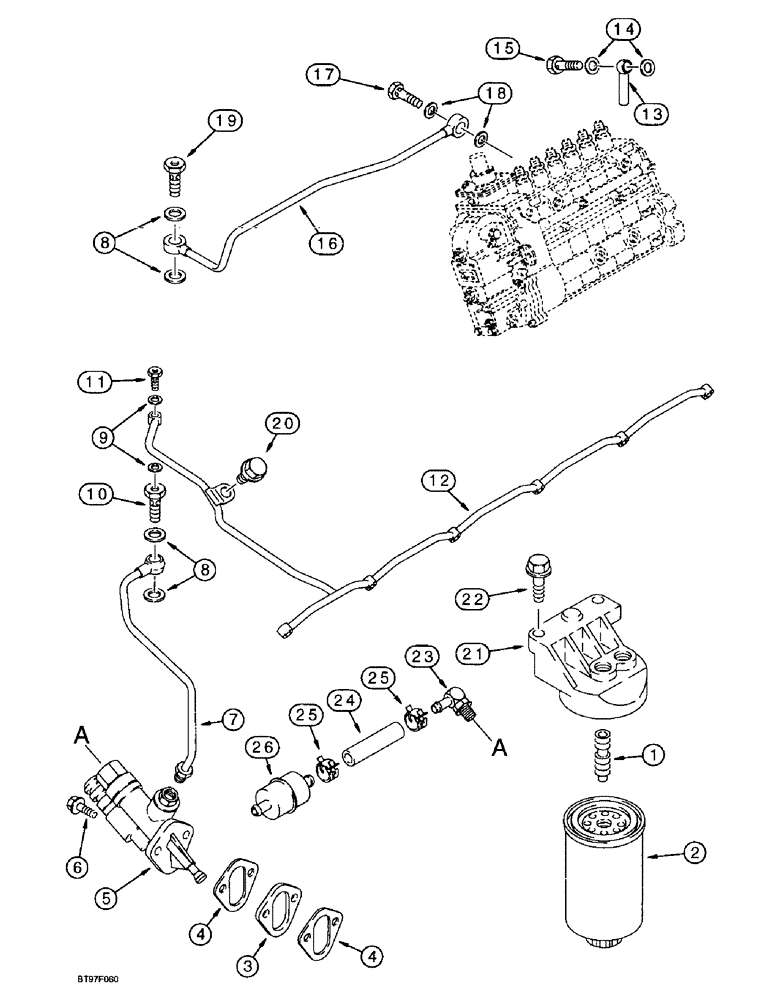

Запчасти Case IH 6591TA (3-06) - FUEL FILTER AND LIFT PUMP, 6T-590 EMISSIONS CERTIFIED ENGINE

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

2

J843760

FILTER

- fuel

1шт.

3

J914284

SPACER

- fuel transfer pump mounting

1шт.

4

J931348

GASKET

- mounting, fuel transfer pump

2шт.

5

J930134

PUMP

- fuel transfer

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

TUBE - supply, fuel pump to fuel filter

1шт.

8

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

10

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

VALVE - check

1шт.

12

J926103

MANIFOLD

TUBE - manifold, fuel

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

15

J912886

VALVE

- overflow

1шт.

16

J930735

FUEL TUBE,8 mm OD

TUBE - supply, fuel

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT - banjo connector

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

19

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

21

J926788

HEAD

- fuel filter

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

2шт.

23

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

ELBOW - 90 degree, 1/2 inch stem end x PT

1шт.

Not part of the engine assembly.

1шт.

24

196247A1

FUEL HOSE,12.70 mm ID x 78.0 mm, SAE 30R7

12.70 mm ID x 78.0 mm, SAE 30R7

1шт.

Not part of the engine assembly.

1шт.

25

196252A1

CLAMP

- adjustable

2шт.

Not part of the engine assembly.

1шт.

26

194199A1

FUEL FILTER

FILTER - fuel, in-line

1шт.

Not part of the engine assembly.

1шт.
