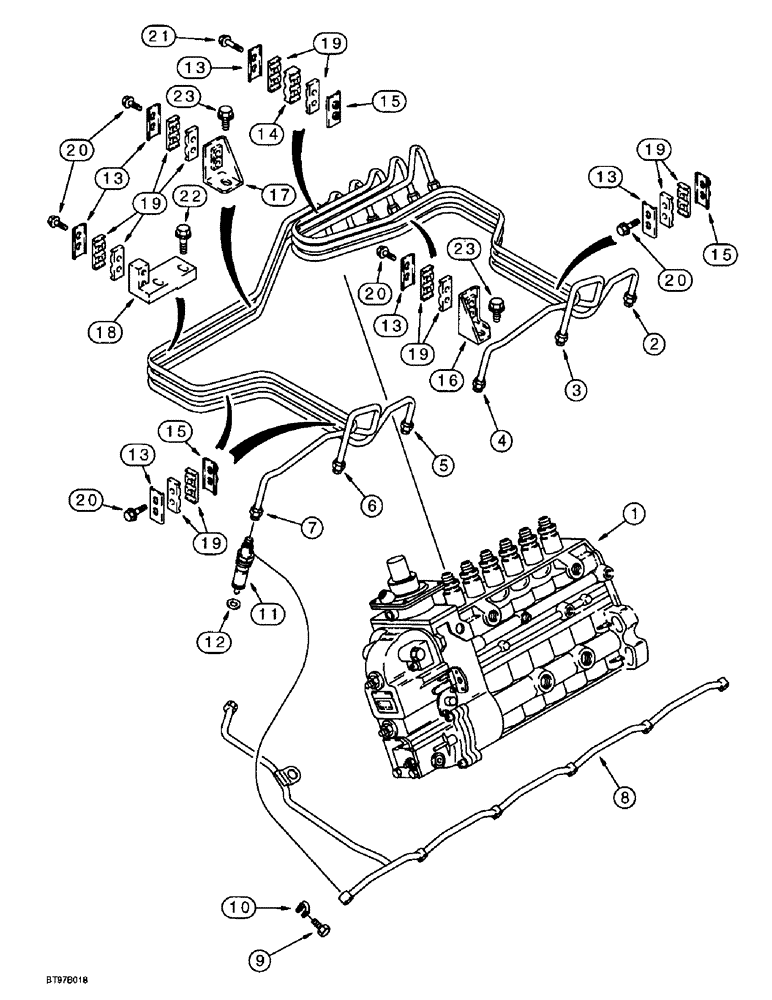

Запчасти Case IH 6591TA (3-04) - FUEL INJECTION SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE

1

J928597

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, parts list page 3-15 for Model 6591TA

1шт.

1

JR928597

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP for Model 6591TA

1шт.

1

JC928597

CORE-INJECTION PUMP

Return Number

1шт.

2

J932102

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

3

J932103

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

4

J932104

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

5

J932105

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

6

J932106

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

7

J932107

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

8

J926103

MANIFOLD

TUBE - manifold, fuel

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

10

J903380

SEAL

SEAL - connector

6шт.

11

J929490

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, parts list page 3-19

6шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

12

J906659

SEAL

SEAL - injector nozzle, 7 mm injector tip

6шт.

13

J904519

SUPPORT

BRACE - tube retaining

7шт.

14

J917748

CLAMP

CLAMP - fuel tube

1шт.

15

J917716

BRACE

BRACKET - fuel tube

3шт.

16

J917777

BRACE

BRACE - fuel tube

3шт.

17

J932417

BRACE

BRACE - fuel tube

1шт.

18

J932456

BRACE

BRACE - fuel tube

1шт.

19

J917747

CLAMP

CLAMP - fuel tube

14шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

6шт.

21

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

22

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT, Hex Flg, M8 x 25, 8.8

2шт.

23

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

2шт.
