Запчасти Case IH 6591TA (3-02) - FUEL INJECTION SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE

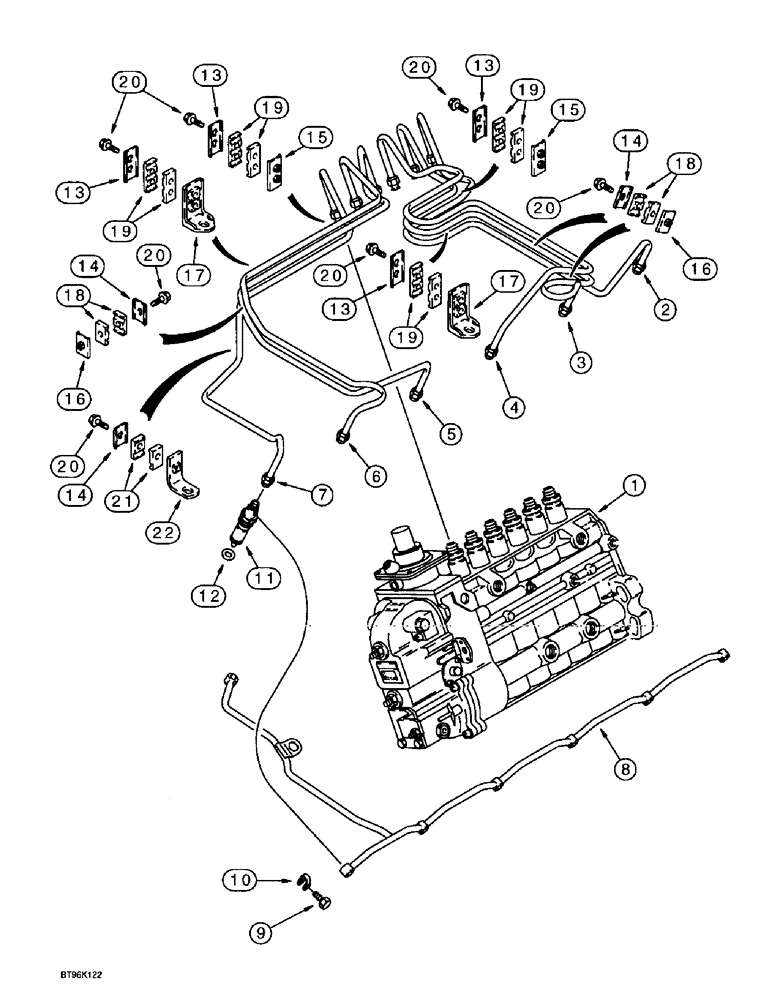

Схема запчастей Case IH 6591TA - (3-02) - FUEL INJECTION SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE
2
13
22
10
13
14
19
20
20
6
13
20
18
14
20
12
13
15
4
9
5
17
17
20
8
7
16
19
11
18
21
3
19
14
16
1
19
20
15

Артикул

Название

Примечание

Количество

1

J929406

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, parts list page 3-15

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

8

J926103

MANIFOLD

TUBE - manifold, fuel

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

10

J903380

SEAL

SEAL - connector

6шт.

11

J929490

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, parts list page 3-19

6шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

12

J906659

SEAL

SEAL - injector nozzle, 7 mm injector tip

6шт.

13

J904519

SUPPORT

BRACE - tube retaining

4шт.

14

J904711

SUPPORT

BRACKET - fuel tube

4шт.

15

J917716

BRACE

BRACKET - fuel tube

2шт.

16

J917717

BRACE

BRACKET - fuel tube

3шт.

17

J282942

BRACKET

BRACE - fuel tube

2шт.

18

J917746

CLAMP

CLAMP - fuel tube

5шт.

19

J917747

CLAMP

CLAMP - fuel tube

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

14шт.

21

J919359

CLAMP

CLAMP - vibration

2шт.

22

J940840

BRACE

BRACE - fuel tube

1шт.

Выбрано товаров: 24
