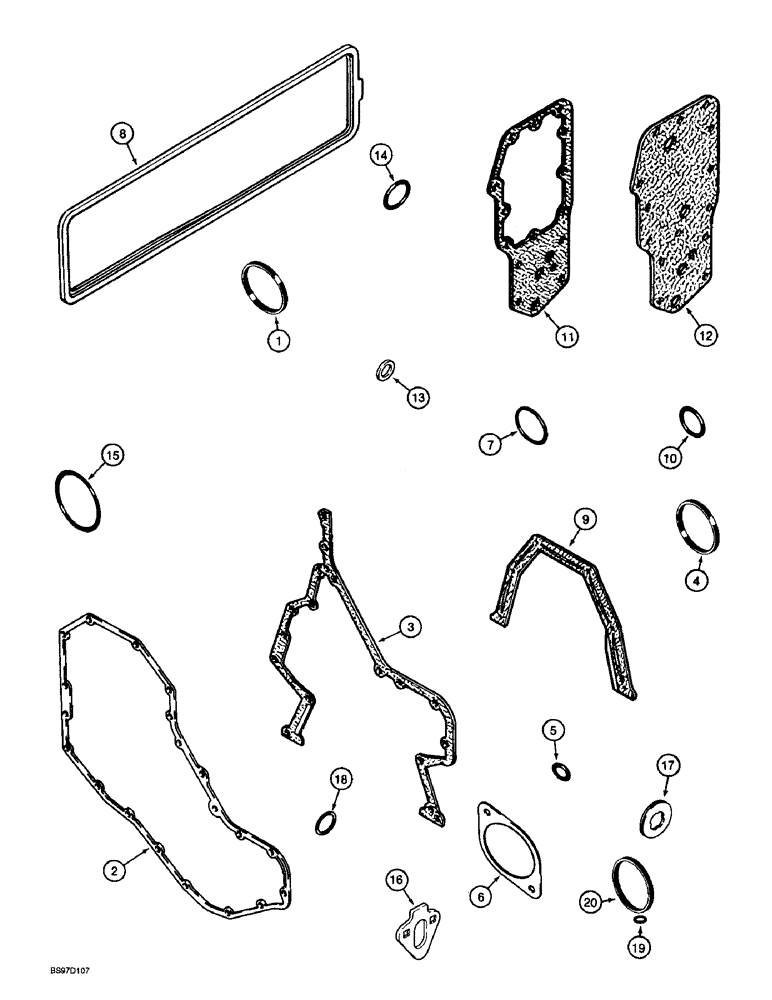

Запчасти Case IH 6591TA (2-52) - GASKET KIT, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK

A77868

SEAL PACKAGE

KIT - gasket, cylinder block

1шт.

For complete engine overhaul, order one each of valve grind kit, page 2-51, cylinder block kit, oil pan kit, page 2-29, front and rear crankshaft seal kit, page 2-45 and required cylinder head gasket, page 2-31.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

2

J918673

GASKET,1.02mm Thk

- front cover

1шт.

3

J931351

GASKET

- gear housing

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

5

J913994

O-RING

- sealing, timing pin

1шт.

6

J929751

GASKET

- access cover plate

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

8

J928832

GASKET

- tappet cover

1шт.

9

J928493

GASKET

- rear cover retainer, crankshaft

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection

1шт.

11

J929791

GASKET

- oil cooler core

1шт.

12

J929792

GASKET,1.2mm Thk

- filter head

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, oil pan

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID, oil fill tube

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block

1шт.

16

J931348

GASKET

- mounting, fuel transfer pump

1шт.

17

J928759

SEALING WASHER

- cover bolt, tappet

6шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel housing plug -212, 70 Duro, .859" ID x .139" Thk

1шт.

19

J929457

O-RING

- plug, engine oil cooler

1шт.

20

J930993

O-RING

- sealing, fuel injection pump mounting

1шт.
