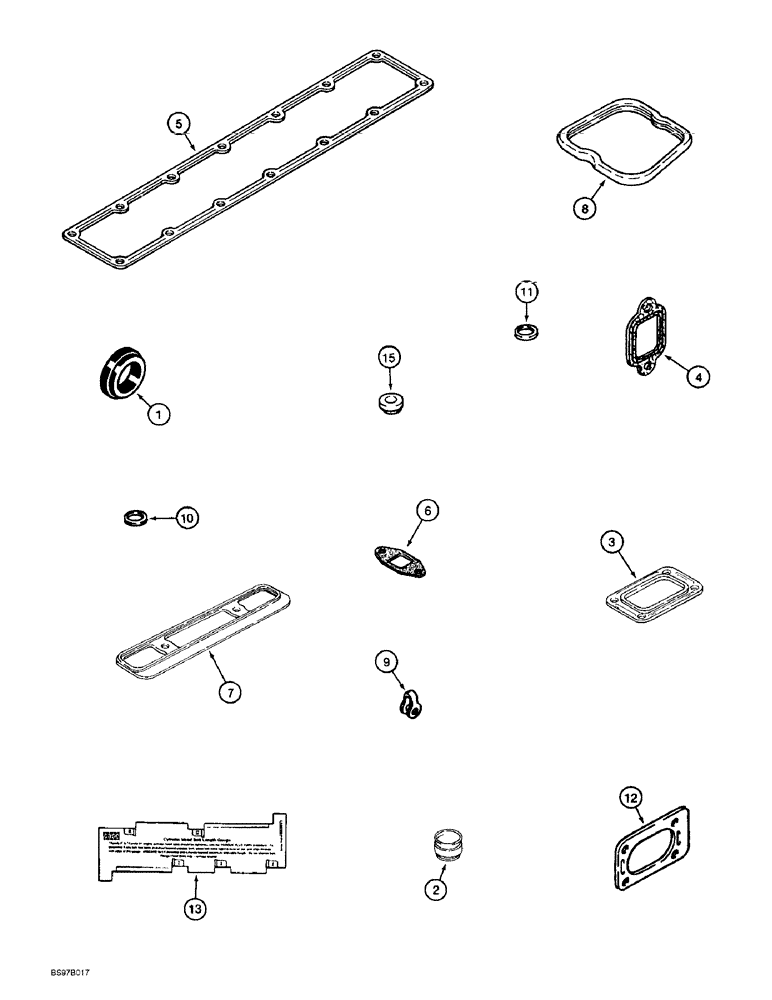

Запчасти Case IH 6591TA (2-50) - GASKET KIT, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE, VALVE GRIND

A77871

SEAL PACKAGE

KIT - gasket, valve grind

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, item 2, on page 2-31.

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J901097

SEAL

- valve, identified by color black with orange band

6шт.

2

J921640

SEAL

- valve, intake, identified by color orange with silver band

6шт.

3

J919369

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

5

J931347

GASKET

- mounting, intake manifold cover

1шт.

6

J931350

GASKET

- turbo oil drain tube

1шт.

7

J930426

GASKET

- air crossover connection

1шт.

8

J930906

GASKET

SEAL - rocker arm cover

6шт.

9

J903380

SEAL

- connector, return manifold

6шт.

10

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, body to nut, injector nozzle assembly

6шт.

12

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

13

J823921

GAUGE

- cylinder head, bolt length

1шт.

14

J928406

ISOLATOR

- noise, rocker arm cover

6шт.
