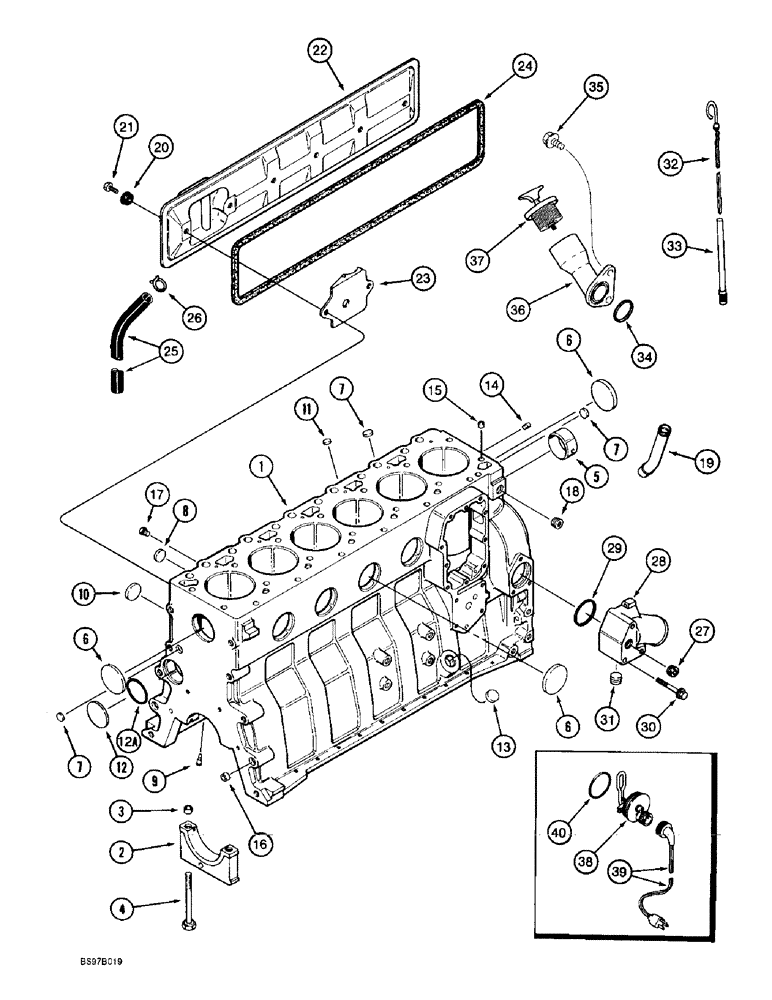

Запчасти Case IH 6591TA (2-36) - CYLINDER BLOCK, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE, PRIOR TO ENG. SERIAL NUMBER 45534441

220003A1

POWER UNIT

ENGINE ASSEMBLY - 6T-590 Emissions Certified, complete, for service order 246148A1 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

220002A2

POWER UNIT

ENGINE ASSEMBLY - 6TA-590 Emissions Certified, complete, for service order 246148A1 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

246148A1R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE ASSEMBLY - basic, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

246148A1C

CORE-ENGINE

RETURN NUMBER - use this part number to return core for credit when using a remanufactured assembly

1шт.

246148A1

BASIC ENGINE

ASSEMBLY

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner.

1шт.

246148A2R

REMAN-BASIC ENGINE

Remanufactured, For N.A. Only

1шт.

AR77867

ENGINE

BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, no longer available, order JR933645 remanufactured short block assembly shown on page 2-41

1шт.

AC77761

CORE-ENGINE

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

A77867

MOTOR

BLOCK ASSEMBLY - short, new

1шт.

Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings. No longer available. Order J933645 short block assembly on page 2-41 and (2) 250838A2 connectors. P/N 250838A2 connector is used for adapting the oil pressure sender to the new cylinder block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see page 2-35, item 6

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

4шт.

9

J930139

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

13

J920706

PLUG

PLUG - expansion, 22 mm OD, not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, Sq Soc, 1/2"-14, NTPF

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

22

J927913

COVER

COVER - tappet

1шт.

23

J907586

BAFFLE

BAFFLE - tappet cover, use with J823494 sealant, see below

1шт.

24

J928832

GASKET

GASKET - tappet cover

1шт.

25

J918614

TUBE,435.00 mm

HOSE - 635 mm (25 inch) long

1шт.

26

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

27

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

28

J920315

CONNECTION

CONNECTION - water inlet

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

31

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

32

J907714

DIPSTICK

DIPSTICK - engine oil

1шт.

33

J905127

TUBE,9.52 mm OD x 180 mm L

TUBE - dipstick

1шт.

34

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

35

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

BOLT, Hex Flg, M12 x 25, 8.8

2шт.

36

J911696

TUBE,38.1 - 52.39 mm OD x 102.9, 56.5 mm L

TUBE - oil fill

1шт.

37

A77424

FILLER CAP

CAP - oil fill tube

1шт.

196803A1

KIT

KIT - engine block heater

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - engine block heater, 120 volt, 750 watt

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

40

J910517

O-RING

O-RING - heater sealing

1шт.

J823494

SEALANT

SEALANT - Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube

1шт.
