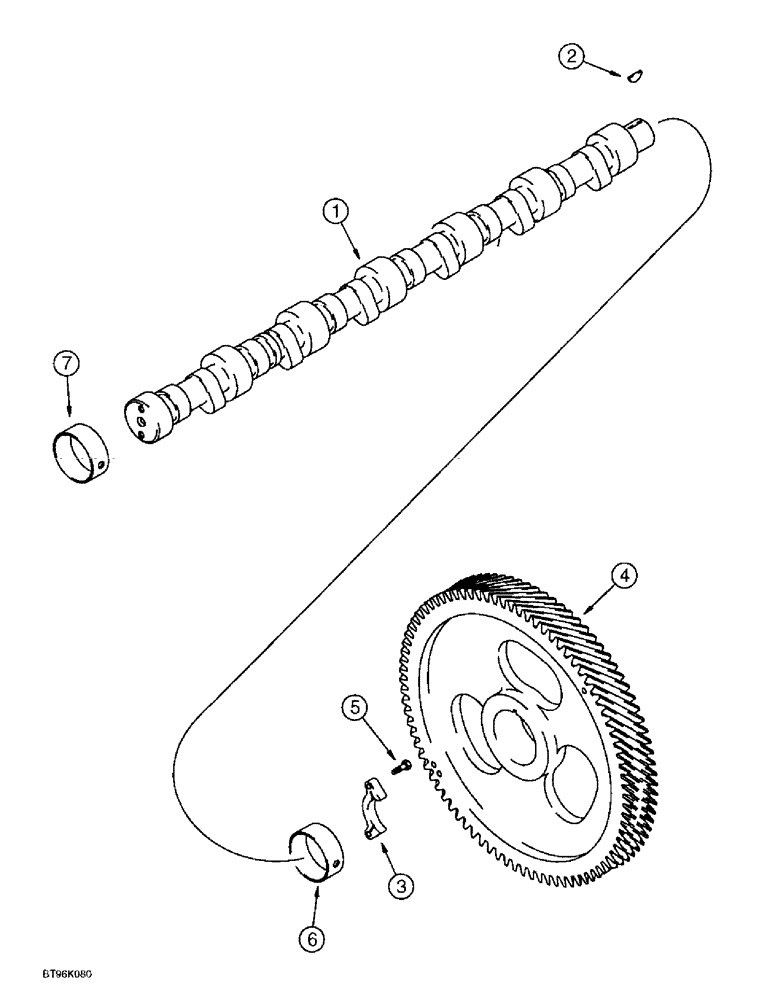

Запчасти Case IH 6591TA (2-34) - CAMSHAFT, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

1

J929886

CAMSHAFT

- engine

1шт.

1

J929886R

REMAN-CAMSHAFT

6591T, 6591TA, Both CASE IH IRRIGATION POWER UNIT, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE, engine

1шт.

1

J929886C

CORE-CAMSHAFT

Return Number

1шт.

2

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

(No. 6) M4 x 6.5 x 15.72

1шт.

3

J927155

SUPPORT

- thrust, camshaft

1шт.

4

J929030

PINION

GEAR - camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901306

BUSHING

- camshaft, front

1шт.

6

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

- camshaft, front, used on engine S/N 45534441 and after

1шт.

6

J904369

BUSHING

- camshaft, front, oversize, 58 mm OD

1шт.

7

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear, service repair only

6шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install item 7, J903242 bushings shown above.

1шт.
