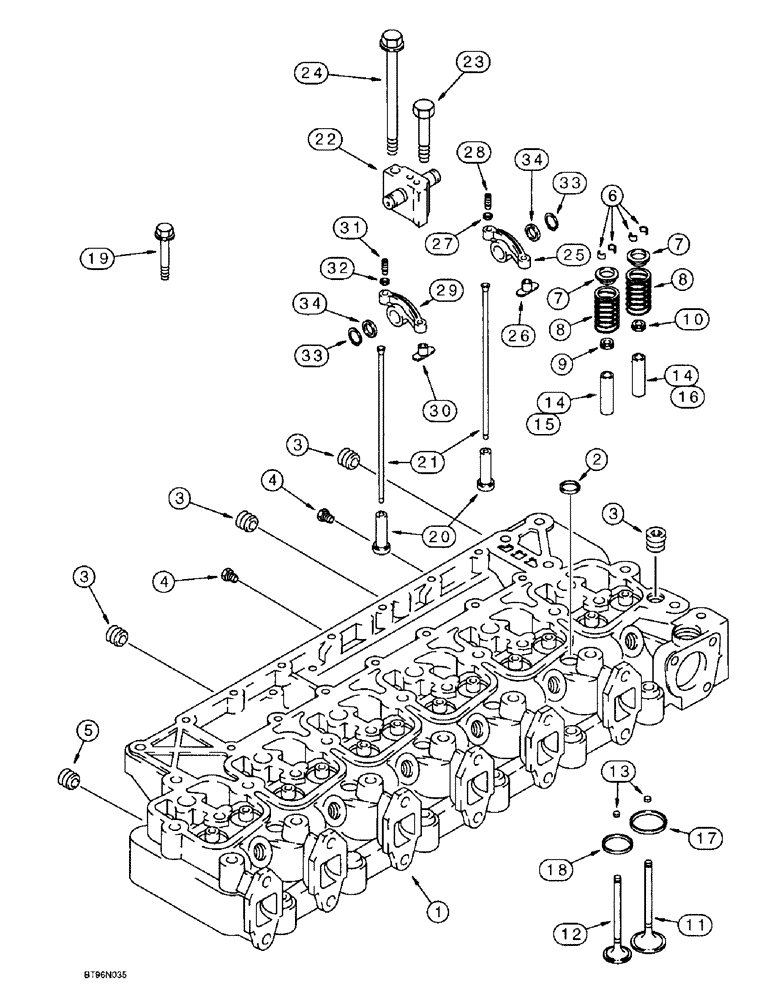

Запчасти Case IH 6591TA (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

JR927301

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC927301

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J927301

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves

1шт.

1

J930652

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, without valves

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, Sq Soc, 1/2"-14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J926700

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve

6шт.

10

J921640

SEAL

- valve, intake

6шт.

11

J920867

VALVE

- intake

6шт.

12

J920868

VALVE

- exhaust

6шт.

13

J910412

WEAR PAD

PAD - wear, valve stem tip, service repair only, for use on intake and exhaust valves

6шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD

6шт.

NOTE: These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD

6шт.

NOTE: These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm OD

12шт.

NOTE: These parts are semi-finished valve guides.

1шт.

17

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

18

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

14шт.

20

J931623

TAPPET

- valve, push rod

12шт.

21

J923262

PUSH ROD

ROD - push, rocker arm

12шт.

22

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

6шт.

23

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

6шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

33

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

34

J900245

WASHER

- thrust, rocker arm

12шт.
