(2-26) - OIL FILTER AND COOLER, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH 6591TA (2-26) - OIL FILTER AND COOLER, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

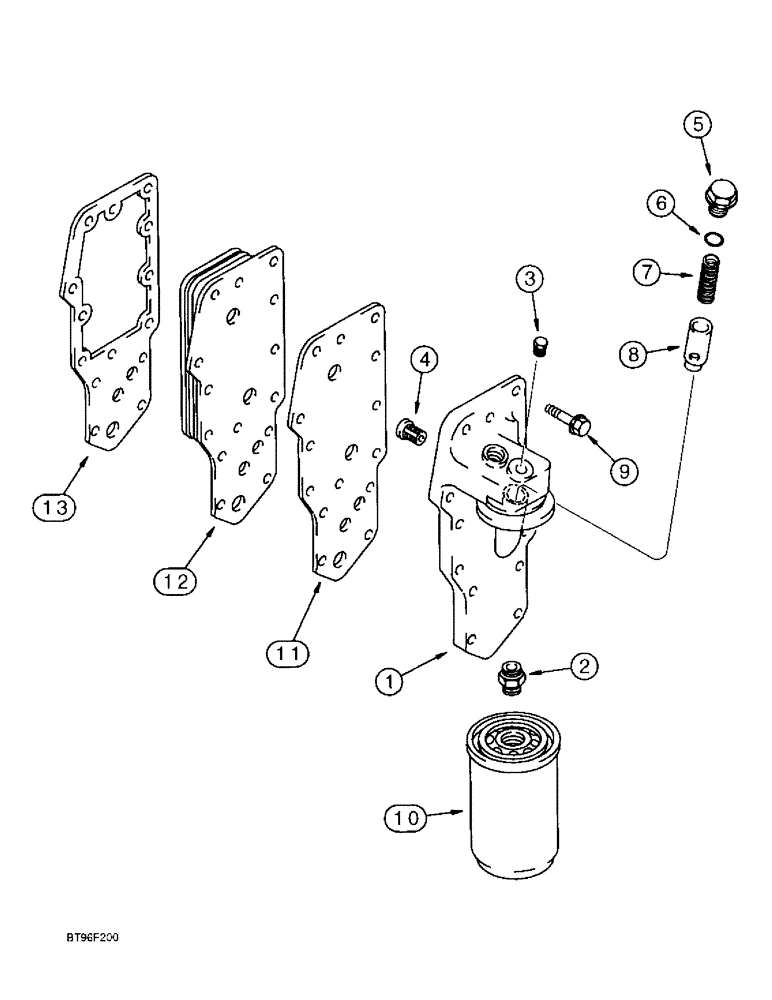

Схема запчастей Case IH 6591TA - (2-26) - OIL FILTER AND COOLER, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE
7
1
11
4
5
8
9
3
10
12
6
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J918954

HEAD

ASSEMBLY - oil filter and cooler

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - oil filter and cooler

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

4

J927622

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

J915787

PLUG

- threaded

1шт.

6

J929457

O-RING

- plug

1шт.

7

J925009

SPRING

- compression

1шт.

8

J918428

PLUNGER

- regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

10

J908615

FILTER

- engine oil, cartridge

1шт.

11

J942915

GASKET

- filter head

1шт.

12

J921558

COOLER

CORE - cooler, oil

1шт.

13

J942914

GASKET

- oil cooler core

1шт.
