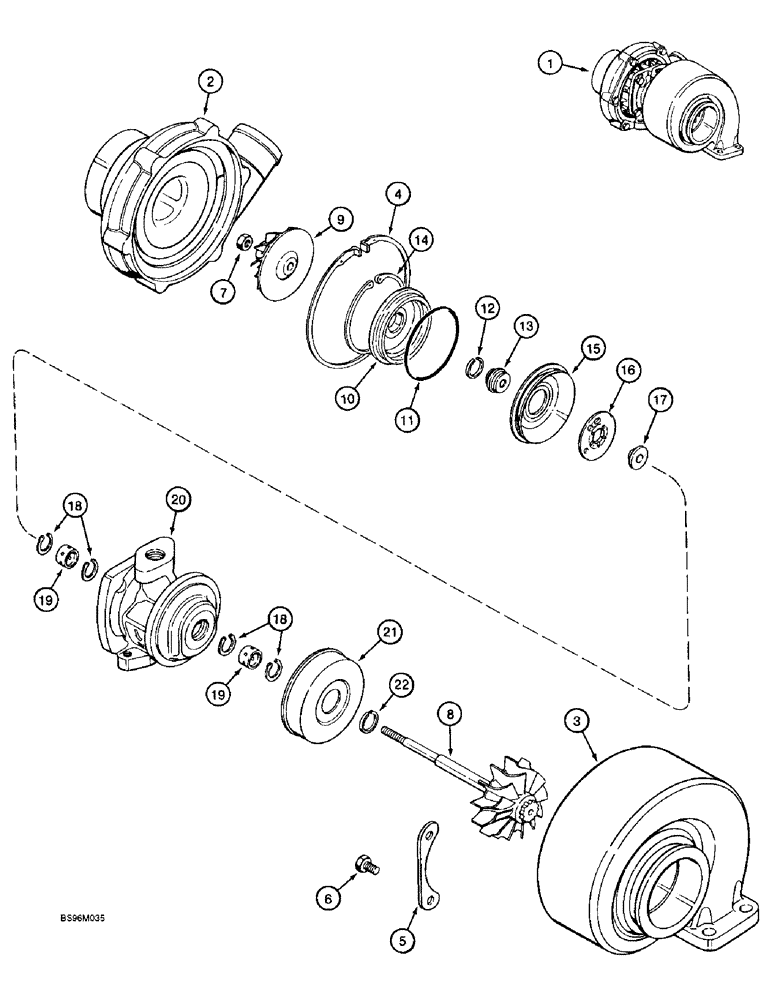

Запчасти Case IH 6591TA (2-24) - TURBOCHARGER, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

1

J802770

TURBOCHARGER

KIT - turbocharger with gaskets, includes new turbocharger assembly and one each of J709861 turbocharger mounting gasket and J519807 turbo oil drain tube gasket, not shown

1шт.

1

JR802770

REMAN-TURBOCHARGER

6591T, 6591TA, Both w/Tier 1 Engine

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

4

J533163

SNAP RING

RING - retaining

1шт.

5

J501188

PLATE

- clamping, turbine housing

2шт.

6

J759917

SET SCREW

SCREW - set, hex head, plate retaining

4шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

J575217

HOUSING

CENTER HOUSING ASSEMBLY - turbocharger

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

9

NSS

NOT SOLD SEPARAT

IMPELLER - turbo compressor

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - oil seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

13

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

14

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

15

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

17

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

18

NSS

NOT SOLD SEPARAT

RING - snap, retaining

4шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

21

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - split ring, turbine

1шт.

J575169

REPAIR KIT

KIT - overhaul, turbocharger, Includes: Refs. 6, 7, 8, 11, 12, 14, 15, 16, 18 and 19

1шт.
