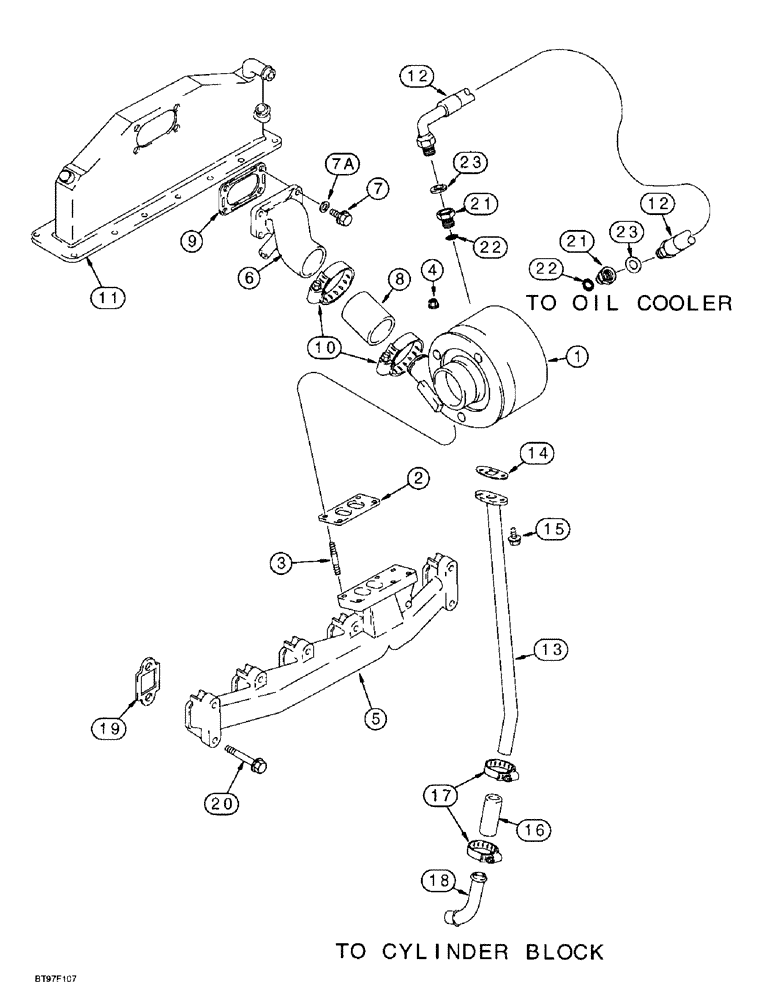

Запчасти Case IH 6591TA (2-22) - TURBOCHARGER SYSTEM AND MANIFOLDS, 6TA-590 EMISSIONS CERTIFIED ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list page 2-25

1шт.

2

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

5

J901683

MANIFOLD

- exhaust

1шт.

6

J933289

CONNECTOR, ELEC

CONNECTION - air crossover

1шт.

7

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

4шт.

7a

J918189

SEALING WASHER

WASHER - sealing

4шт.

8

J916165

HOSE

Crossover tube

1шт.

9

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

10

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

CLAMP - adj, 2-1/16 - 3 inch dia

2шт.

11

J919806

AFTERCOOLER

- air intake, see page 2-21 for mounting

1шт.

12

J918562

HOSE

- 538 mm (21-3/16 inch) long, oil supply

1шт.

13

J918579

TUBE

- turbocharger oil drain, upper

1шт.

14

J931350

GASKET

- turbo oil drain tube

1шт.

15

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

16

J903745

LARGE HOSE

HOSE - 76 mm (3 inch) long, oil drain

1шт.

17

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

18

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

19

J927154

GASKET,0.38mm Thk

- exhaust manifold

6шт.

20

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

12шт.

21

J919687

HYD CONNECTOR

ADAPTER - female hex, special

2шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Outer

1шт.

23

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.
