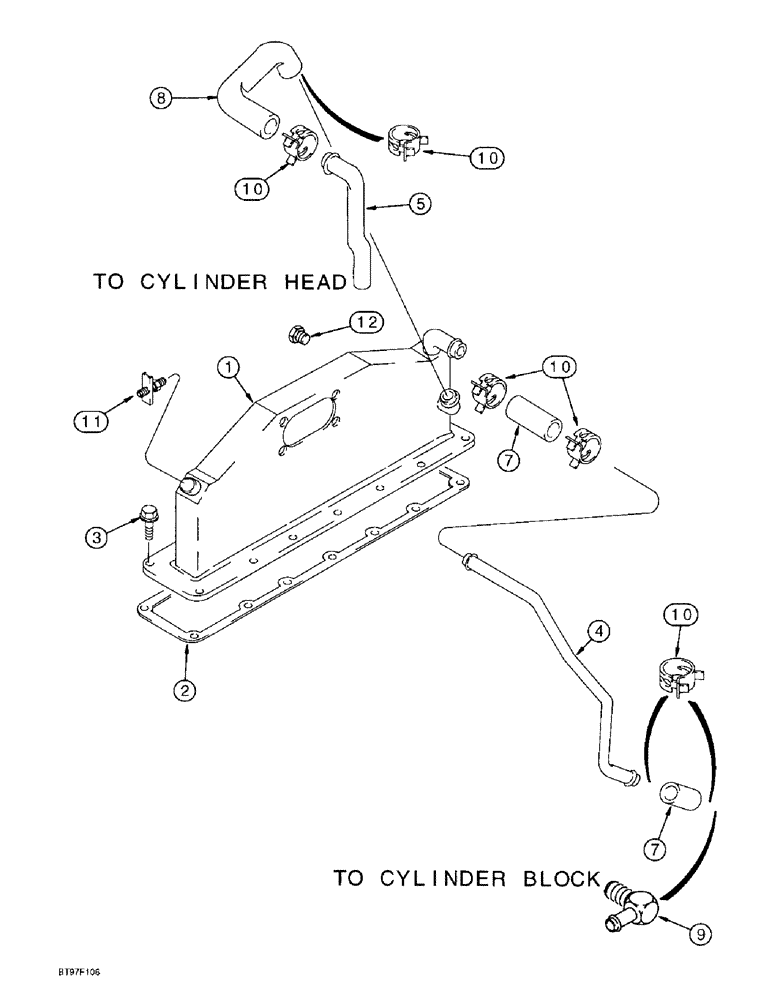

Запчасти Case IH 6591TA (2-20) - AFTERCOOLER, 6TA-590 EMISSIONS CERTIFIED ENGINE

1

J919806

AFTERCOOLER

- air intake

1шт.

2

J931347

GASKET

- mounting, aftercooler

1шт.

3

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, special

16шт.

4

J914855

TUBE,0.75" OD

- aftercooler return

1шт.

5

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- aftercooler drain

1шт.

7

J918611

HOSE,18.50 mm ID x 63.00 mm

Tube to Aftercooler 18.50 mm ID x 63.00 mm

2шт.

8

J928492

TUBE

HOSE - elbow, return, Serial Range: aftercooler-tube

1шт.

9

J282444

COUPLING

-, Serial Range: block-hose

1шт.

10

J918163

CLIP

CLAMP - spring type, aftercooler, Serial Range: hoses-tubes

6шт.

11

J909394

COCK, DRAIN

VALVE - drain, air bleed

1шт.

12

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT, installed in aftercooler drain

1шт.

13

J910778

DECAL

- Caution, open during fill, not shown

1шт.
