(3-10) - ANEROID SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH 6591T (3-10) - ANEROID SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE

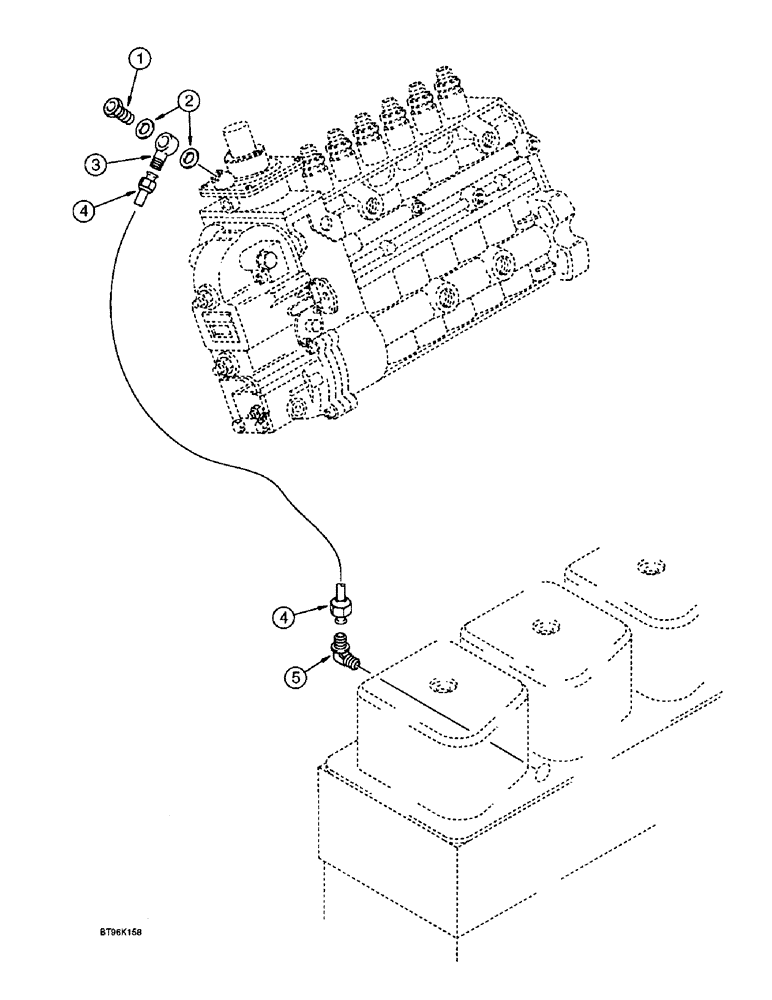

Схема запчастей Case IH 6591T - (3-10) - ANEROID SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE
4
5
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

2

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

3

J919644

FITTING

CONNECTOR - banjo

1шт.

4

J926739

TUBE

- aneroid, nylon

1шт.

5

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 90 degree, compression, 3/16 tube OD x 1/8 inch PT

1шт.
