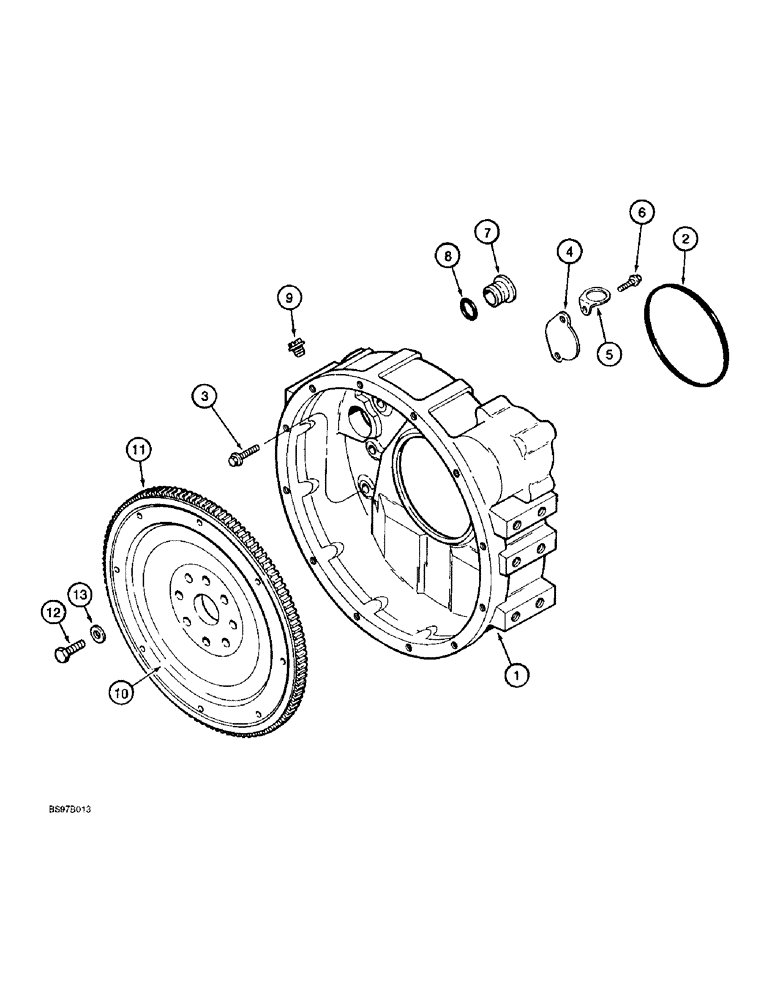

Запчасти Case IH 6591T (2-46) - FLYWHEEL AND HOUSING, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

1

J937426

HOUSING

- flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J925234

PLATE

- cover

1шт.

5

J923610

CLIP

- breather hose, retaining

1шт.

6

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

2шт.

7

J910248

PLUG

- flywheel housing

1шт.

8

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

9

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.

10

J936821

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - engine

1шт.

Ref # 10 has center hole of about 1-14", if looking for flywheel with about 2-3/4" hole try j914432. rje-cam 05-09-99

1шт.

11

J905427

GEAR

- ring, flywheel

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.
