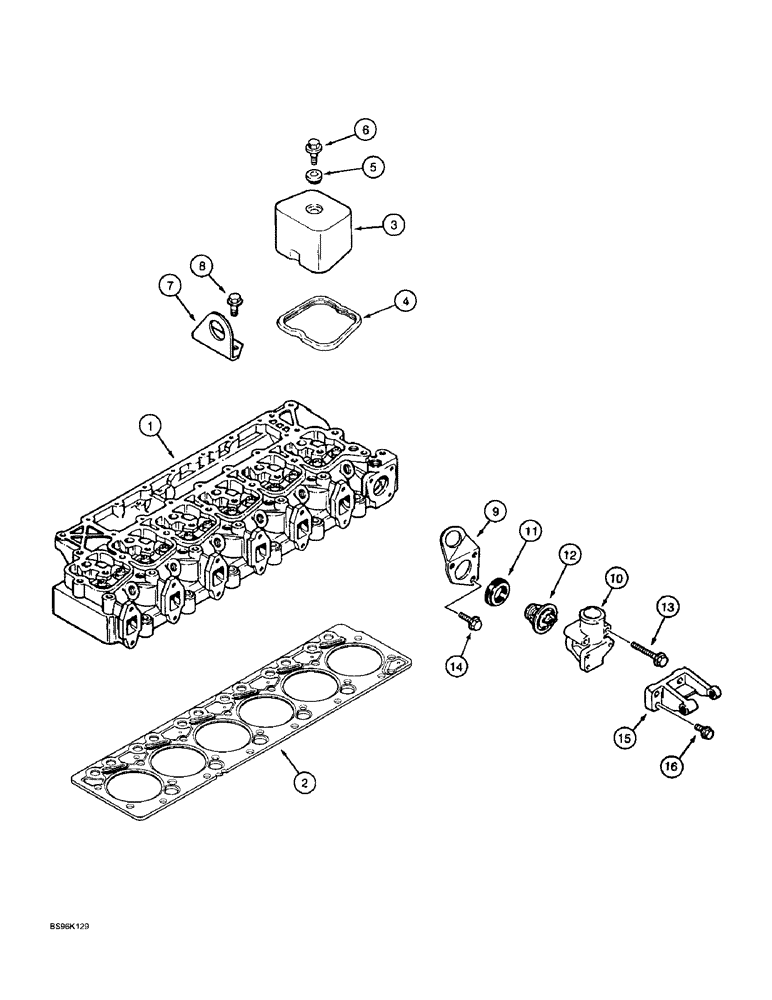

Запчасти Case IH 6591T (2-30) - CYLINDER HEAD COVER, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see page 2-33 for correct cylinder head and parts list

1шт.

2

J283335

GASKET,2.32mm Thk

- head, standard

1шт.

2

J283337

GASKET,2.24mm Thk

- head, 1 notch, 0.25 mm overthick

1шт.

2

J283339

GASKET

- head, 2 notches, 0.50 mm overthick

1шт.

3

J928404

COVER

- rocker arm

6шт.

4

J930906

GASKET

SEAL - rocker arm cover

6шт.

5

J928406

ISOLATOR

- noise

6шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front

1шт.

10

J914409

HOUSING

- thermostat

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat

1шт.

11

J923331

GASKET

- thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

1шт.

15

J923387

SUPPORT

- alternator mounting

1шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.
