Запчасти Case IH 6591T (2-28) - OIL PUMP AND OIL PAN, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

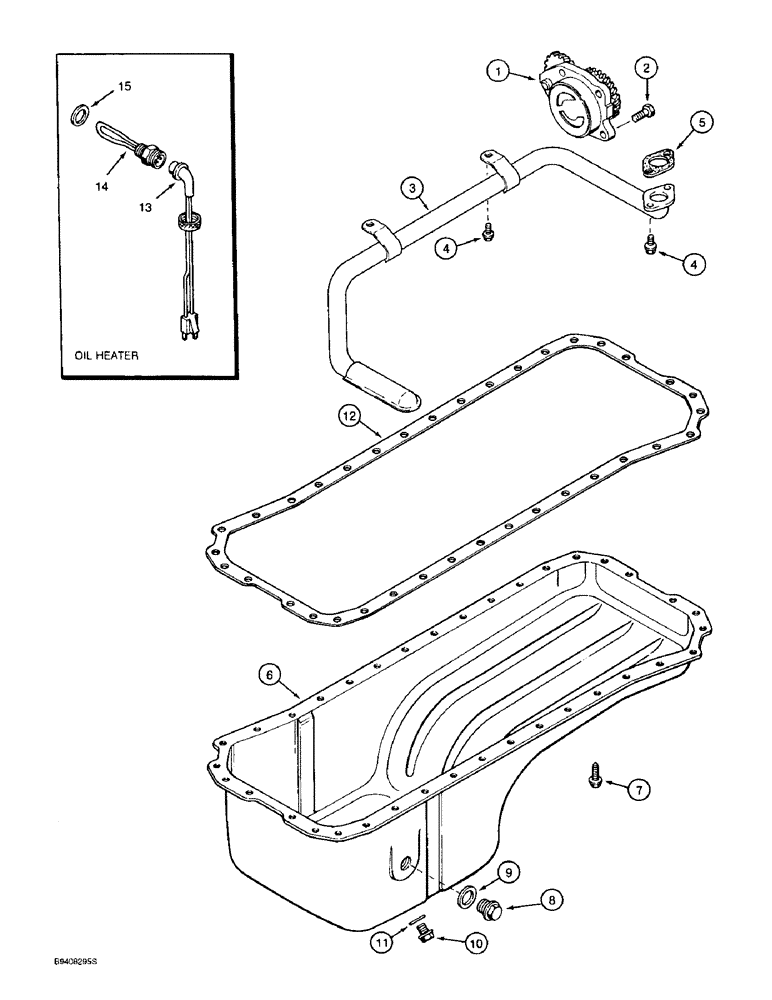

Схема запчастей Case IH 6591T - (2-28) - OIL PUMP AND OIL PAN, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE
13
14
4
9
2
11
6
3
4
10
15
7
8
1
5
12

Артикул

Название

Примечание

Количество

1

J930337

PUMP, ENGINE OIL

PUMP ASEMBLY - oil, engine, new

1шт.

JR930337

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP - oil, remanufactured, North America only

1шт.

JC930337

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J900677

BOLT,Hex

BOLT - hex, full threads, 8 - 1.25 x 30 mm, pump to cylinder block

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE - oil suction

1шт.

4

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm, Tube to cylinder block

3шт.

5

J931349

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit P/N A77676.

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm, Pan to cylinder block

36шт.

8

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5, heater hole

1шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

10

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 12 mm - 1.5, drain

1шт.

11

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of Oil Pan Gasket Kit P/N A77676.

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77676 kit shown below

1шт.

Part of Oil Pan Gasket Kit P/N A77676.

1шт.

A77676

GASKET KIT

KIT - gasket, oil pan, Includes: Refs. 5, 11, 12

1шт.

A77490

KIT

KIT - heater, engine oil

1шт.

NOTE: When A77490 kit is ordered. Ref. 15, J902425 washer must also be ordered.

1шт.

13

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

NOTE: When A77490 kit is ordered. Ref. 15, J902425 washer must also be ordered.

1шт.

Выбрано товаров: 24
