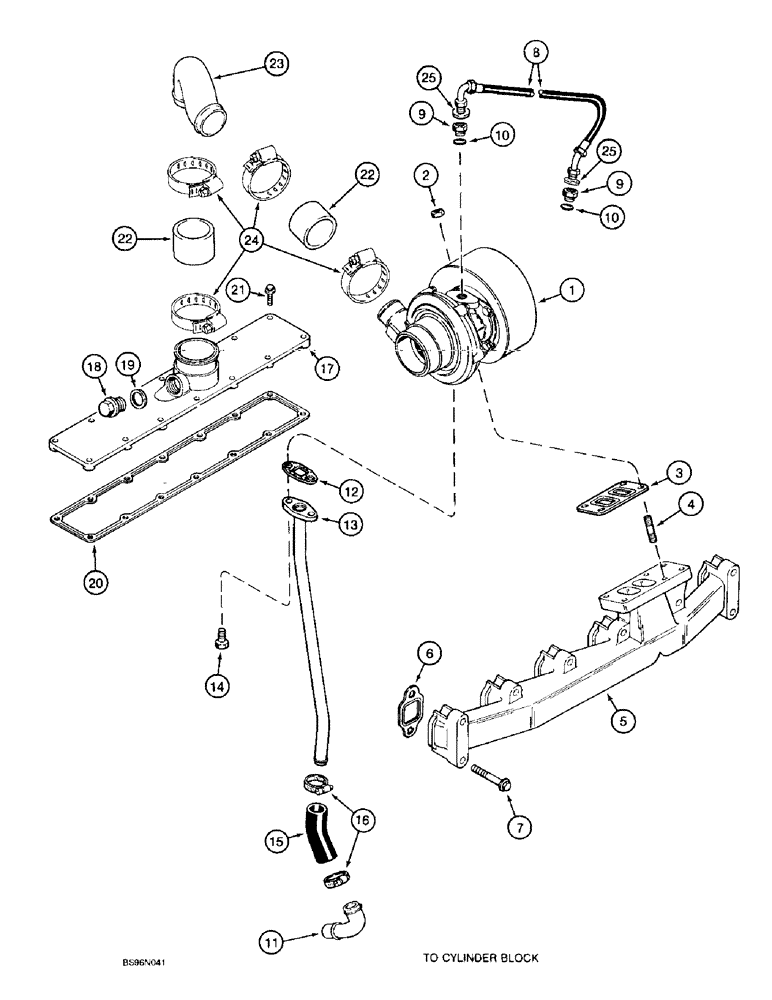

Запчасти Case IH 6591T (2-18) - TURBOCHARGER SYSTEM AND MANIFOLDS, 6T-590 EMISSIONS CERTIFIED ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, new, see page 2-25 for correct assembly and component parts

1шт.

2

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

3

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

4

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

5

J901683

MANIFOLD

- exhaust

1шт.

6

J927154

GASKET,0.38mm Thk

- exhaust manifold

6шт.

7

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

12шт.

8

J918562

HOSE

- 538 mm (21-3/16 inch) long, turbocharger

1шт.

9

J919687

HYD CONNECTOR

ADAPTER - female hex, special

2шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Outer

1шт.

11

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, lower

1шт.

12

J931350

GASKET

- turbo oil drain tube

1шт.

13

J918579

TUBE

- turbocharger oil drain, upper

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

15

J903745

LARGE HOSE

HOSE - 76 mm (3 inch) long, turbocharger oil drain tube to block tube

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

A77418

KIT

- manifold, no longer available, order components separately

1шт.

17

J904862

COVER

- intake manifold

1шт.

18

J907185

PLUG

- manifold

1шт.

19

J906773

WASHER

- plug sealing

1шт.

20

J931347

GASKET

- mounting, intake manifold cover

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Intake Manifold Cover to Cylinder Head Hex Flg, M8 x 25, 8.8

16шт.

22

J916165

HOSE

Crossover tube

2шт.

23

J931453

TUBE,63.5 mm OD x 254.77 mm L

- air intake, crossover

1шт.

24

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

CLAMP - adj, 2-1/16 - 3 inch dia

4шт.

25

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
