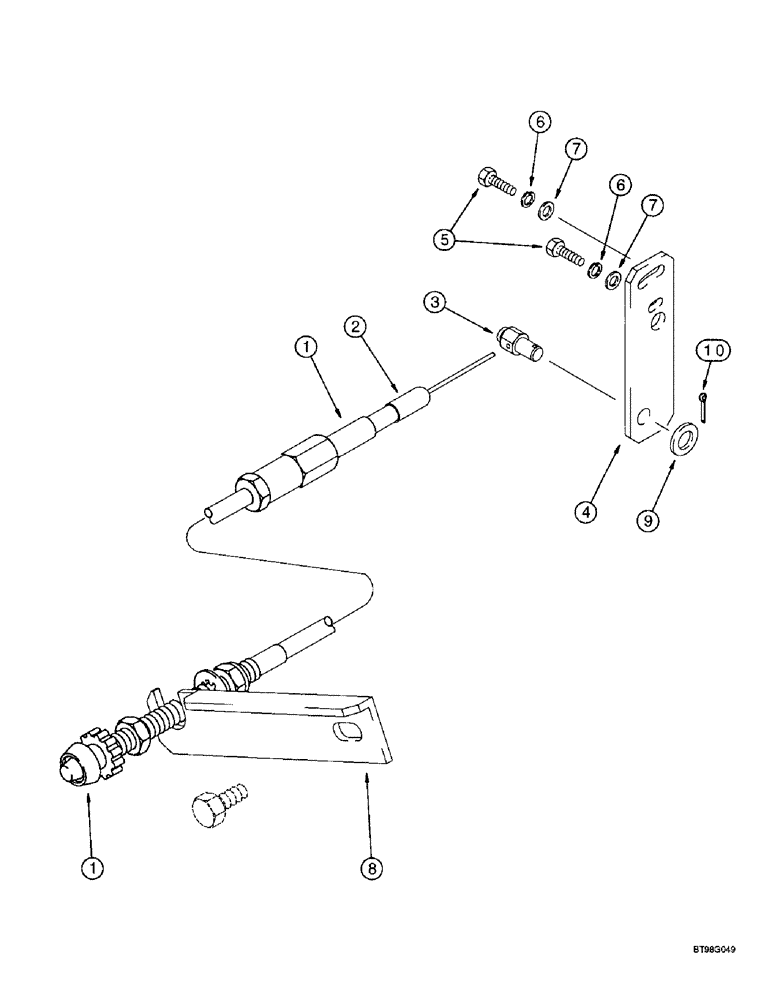

Запчасти Case IH 4391TA (3-22) - THROTTLE CONTROL (03) - FUEL SYSTEM

1

300745A1

CABLE

- control, throttle

1шт.

2

309764A1

BOOT

- dust, control cable

1шт.

3

309762A1

PIVOT

- control cable

1шт.

4

300747A1

BRACKET

- throttle lever extension, at injection pump

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

8

300746A1

BRACKET

- mounting, control cable at flywheel housing

1шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.
