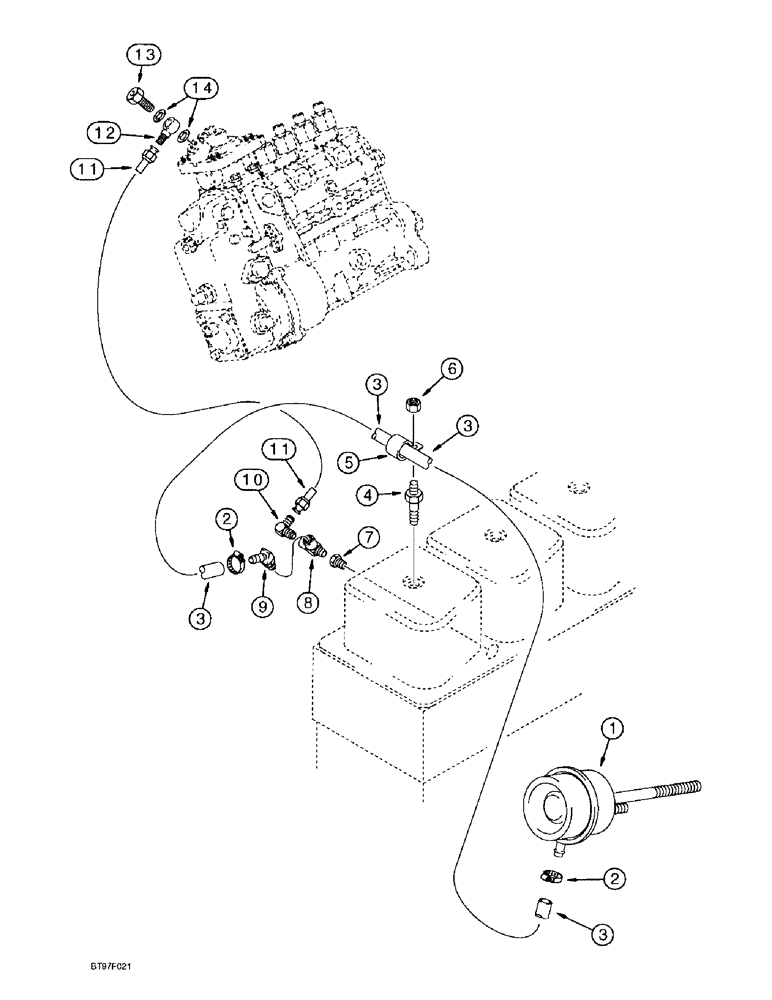

Запчасти Case IH 4391TA (3-10) - ANEROID AND WASTEGATE SYSTEM, 4TA-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J537561

ACTUATOR

- turbo wastegate, see page 2-45

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

2шт.

3

J926113

HOSE,466.00 mm

1шт.

4

J920344

FLANGE BOLT

STUD - valve cover and hose, wastegate actuator mounting

1шт.

5

J920348

CLIP,ELECTRICAL

CLAMP - hose

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

1шт.

7

221-87

REDUCER,1/2" NPT x 1/8" NPT

- pipe, 1/2 male x 1/8 inch female

1шт.

8

J282406

TEE

- 1/8-27 str thread x fem str thread x fem str thread

1шт.

9

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

10

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 90 degree, compression, 3/16 tube OD x 1/8 inch PT

1шт.

11

J926738

TUBE,4.76 mm OD x 110 mm L

- aneroid, nylon

1шт.

12

J919644

FITTING

CONNECTOR - banjo

1шт.

13

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

14

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.
