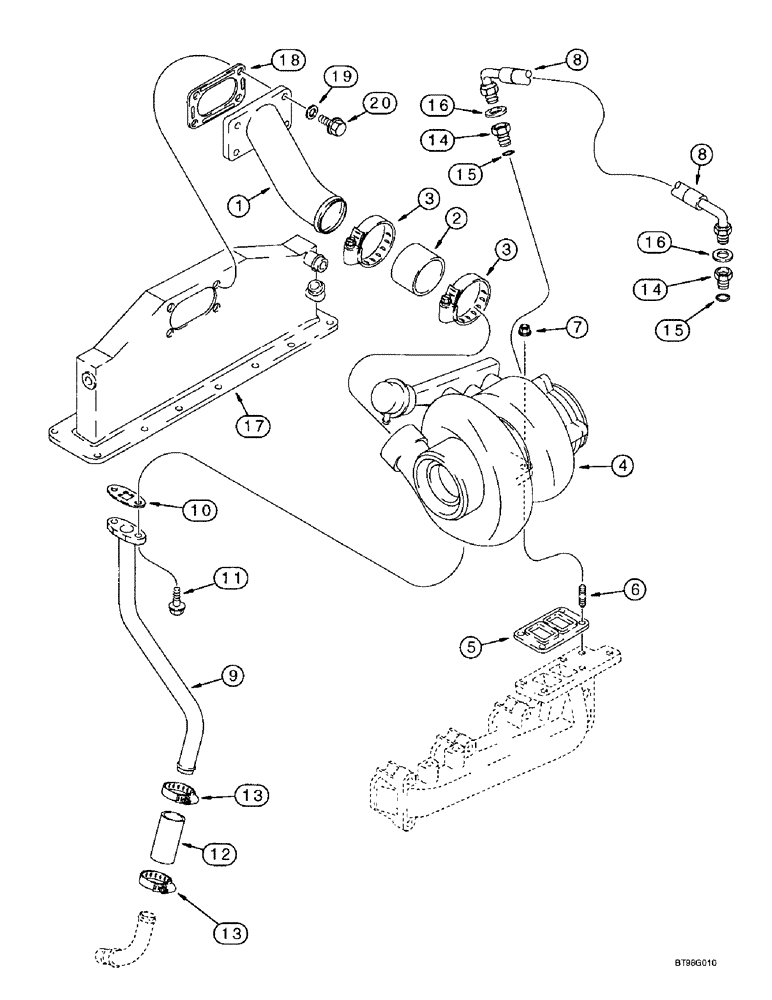

Запчасти Case IH 4391TA (2-38) - TURBOCHARGER SYSTEM, 4TA-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J933338

AIR INTAKE,Turbo

CONNECTION - air crossover

1шт.

2

J916166

INTAKE AIR HOSE

HOSE - 71 mm (2-3/4 inch) long, air intake

1шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.75/2.625 HD Worm, W/liner

2шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, new, see page 2-43 for correct assembly and component parts

1шт.

5

J919369

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

- turbocharger mounting, M10 x 40

1шт.

7

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5, stud

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

- turbocharger oil drain

1шт.

10

J931350

GASKET

- turbo oil drain tube

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

12

J931970

HOSE,22.22 mm ID x 76.20 mm

Turbocharger Oil Drain 22.22 mm ID x 76.20 mm

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

14

J919687

HYD CONNECTOR

ADAPTER - female hex, special (1) used to connect turbocharger oil supply hose to turbocharger, (1) used to connect turbocharger oil supply hose to J918954 oil filter head

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

17

J919805

AFTERCOOLER

- air intake

1шт.

18

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

19

J918189

SEALING WASHER

WASHER - sealing

4шт.

20

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

4шт.
