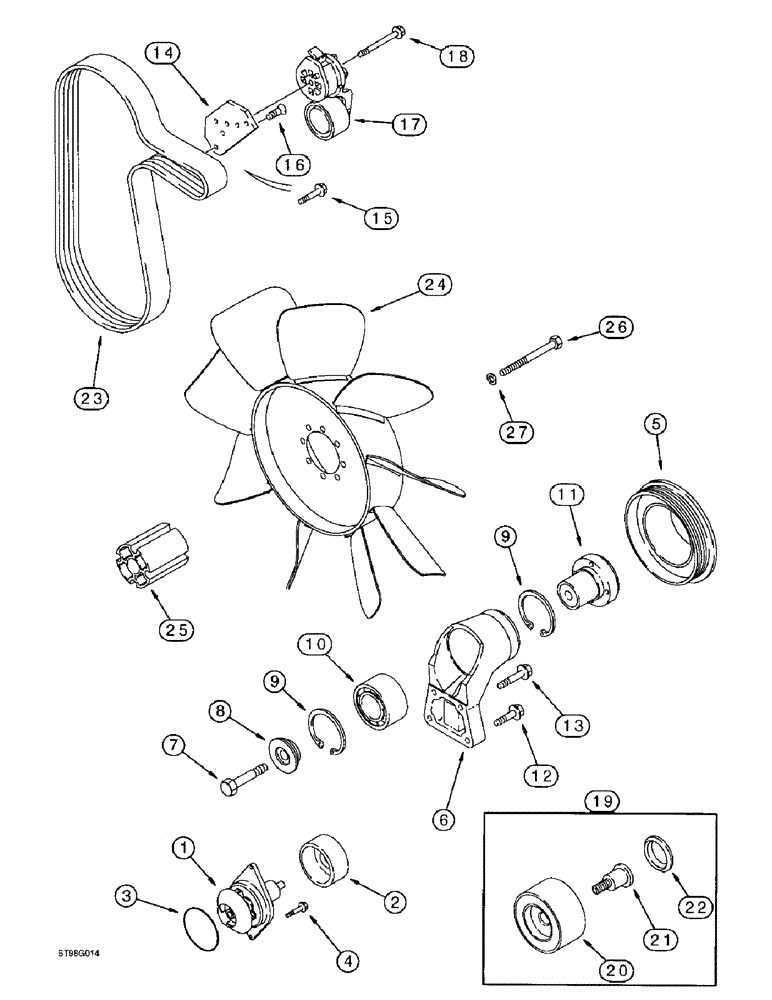

Запчасти Case IH 4391TA (2-28) - WATER PUMP, FAN AND BELT, 4TA-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
J802970
PUMP, WATER
KIT - water pump
1шт.
J286278R
REMAN-WATER PUMP
4391TA
1шт.
J286278C
CORE-WATER PUMP
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
PUMP ASSEMBLY - water
1шт.
2
NSS
NOT SOLD SEPARAT
PULLEY - water pump
1шт.
3
238-5341
O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro
1шт.
4
J900227
BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9
2шт.
6
J911205
BRACKET
SUPPORT - fan
1шт.
7
J907769
BOLT,Hex, M10 x 70mm, Cl 12.9
- hex, special, 10 - 1.5 x 70 mm, class 12.9
1шт.
8
J923044
RETAINER
- fan hub
1шт.
9
100-21250
SNAP RING,2.50", Int, #250
Ring, Snap, 2.50", Int, #250
2шт.
10
J910739
BALL BEARING,35mm ID x 64mm OD x 37mm W
BEARING - ball
1шт.
11
J911924
HUB
- fan
1шт.
12
845-8040
BOLT,Hvy Hex, M8 x 40mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 40 mm, 8.8
2шт.
13
845-8030
BOLT,Hvy Hex, M8 x 30mm, Cl 8.8
2шт.
14
J925195
SUPPORT
BRACKET - belt tensioner
1шт.
15
845-8025
BOLT,Hex Flg, M8 x 25mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 25 mm
2шт.
16
J925186
SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9
- flat head cap, torx, special, 8 - 1.25 x 25 mm
1шт.
18
854-10070
BOLT,Hvy Hex, M10 x 70mm, Cl 10.9
- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9
1шт.
19
A77817
KIT
KIT - belt tensioner pulley, used to replace pulley of J934817 belt tensioner, item 16
1шт.
20
NSS
NOT SOLD SEPARAT
PULLEY - belt tensioner
1шт.
21
NSS
NOT SOLD SEPARAT
BOLT - pulley
1шт.
22
NSS
NOT SOLD SEPARAT
SEAL - dust
1шт.
23
J911558
V-BELT,27.92mm W x 1498.6mm L, 8 Ribs
Fan 3.56 mm W x 1498.60 mm L, 8 Ribs
1шт.
24
283964A1
FAN
- engine
1шт.
25
A189227
SPACER
- fan
1шт.
26
814-10120
BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8
- hex, 10 - 1.5 x 120 mm
4шт.
27
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
4шт.
Выбрано товаров: 30
