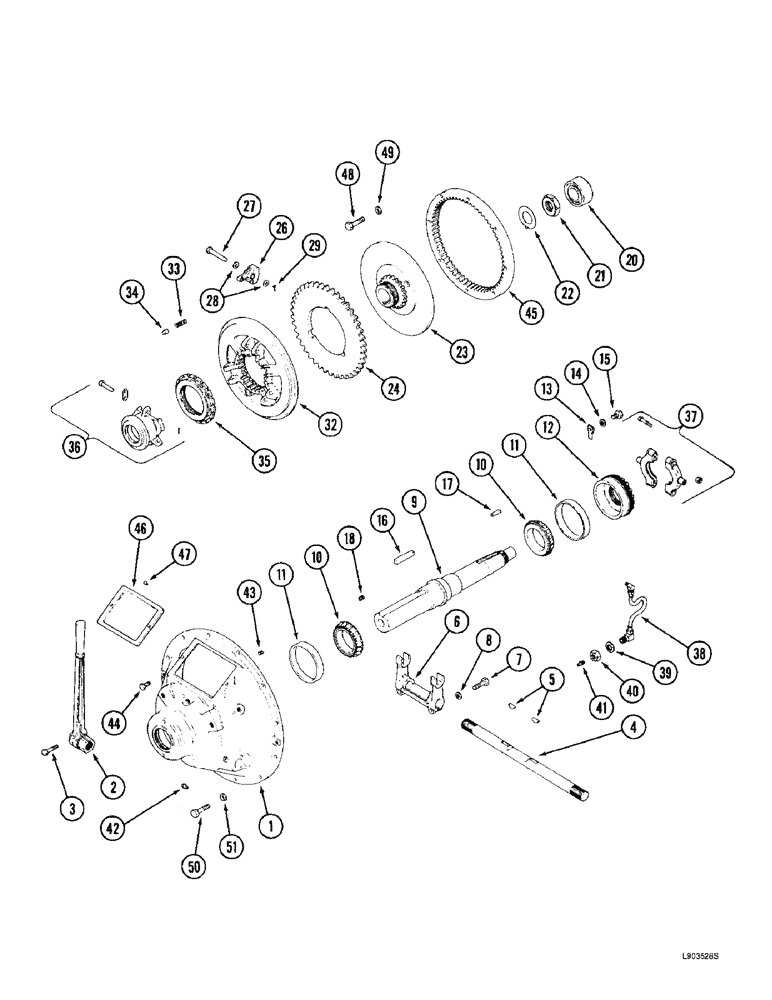

Запчасти Case IH 4391TA (2-22) - PTO CLUTCH, 4391TA UNITS (02) - ENGINE

1347633C1

CLUTCH ASSEMBLY

- PTO, 11-1/2 inch

1шт.

1

A40259

HOUSING

- clutch

1шт.

2

1347799C1

LEVER

- hand

1шт.

3

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

4

A44136

SHAFT

- operating lever

1шт.

5

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

2шт.

6

A10246

YOKE

- throwout

1шт.

7

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

8

193-78

LOCK WASHER,3/8"

WASHER - heavy duty, internal tooth lock, 3/8 inch

2шт.

9

A43199

SHAFT

- clutch

1шт.

10

ST2026

BEARING ASSY,63.5mm ID x 21.996mm

CONE - tapered roller bearing

2шт.

11

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - tapered roller bearing

2шт.

12

A43327

RETAINER

- bearing

1шт.

13

1347816C1

BEARING LOCK NUT

- bearing retainer

1шт.

14

193-83

LOCK WASHER,Int Tooth, 5/16"

WASHER - heavy duty, internal tooth lock, 5/16 inch

1шт.

15

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

16

A40256

KEY

- square, 5/8 x 5/8 x 5-3/8 inch

1шт.

17

A40305

KEY

- square, 3/8 x 3/8 x 2-1/2 inch

1шт.

18

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

20

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

BEARING - ball

1шт.

21

A58595

NUT

- hex

1шт.

22

A9273

LOCK WASHER

- tab lock, hub nut

1шт.

23

A10453

PLATE

- hub

1шт.

24

1347802C1

PLATE

- driving

1шт.

26

A10444

LEVER

- floating plate

3шт.

27

A40254

PIN

- pivot, lever

3шт.

28

A10454

WAVE WASHER

- spring, pivot pin

6шт.

29

A43383

SPLIT PIN

PIN - cotter, special

3шт.

32

A44723

PLATE

- floating

1шт.

33

1347804C1

SPRING

- adjustable lock pin

1шт.

34

1347803C1

PIN

- lock, adjusting ring

1шт.

35

A10448

RING

- PTO adjusting

1шт.

36

A10447

CONE

SLEEVE ASSEMBLY - sliding

1шт.

37

A40245

COLLAR

ASSEMBLY - sleeve

1шт.

38

1347801C1

HOSE

- flexible, 311 mm (12-1/4 inch) long

1шт.

39

193-84

LOCK WASHER,5/8"

WASHER - heavy duty, internal tooth lock, 5/8 inch

1шт.

40

25-1110

NUT,5/8"-18, G5

- hex, 5/8 inch NF

1шт.

41

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

43

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket headless, 5/16 NC x 5/16 inch, oval point

1шт.

44

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

- hex, 1/2 NC x 1/2 inch

2шт.

45

A9270

RING

- drive

1шт.

46

NSS

NOT SOLD SEPARAT

PLATE - name and inspection

1шт.

47

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- external tooth lock, 1/4 NC x 1/2 inch

2шт.

48

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

8шт.

49

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

50

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

12шт.

51

892-11010

LOCK WASHER,M10

12шт.
