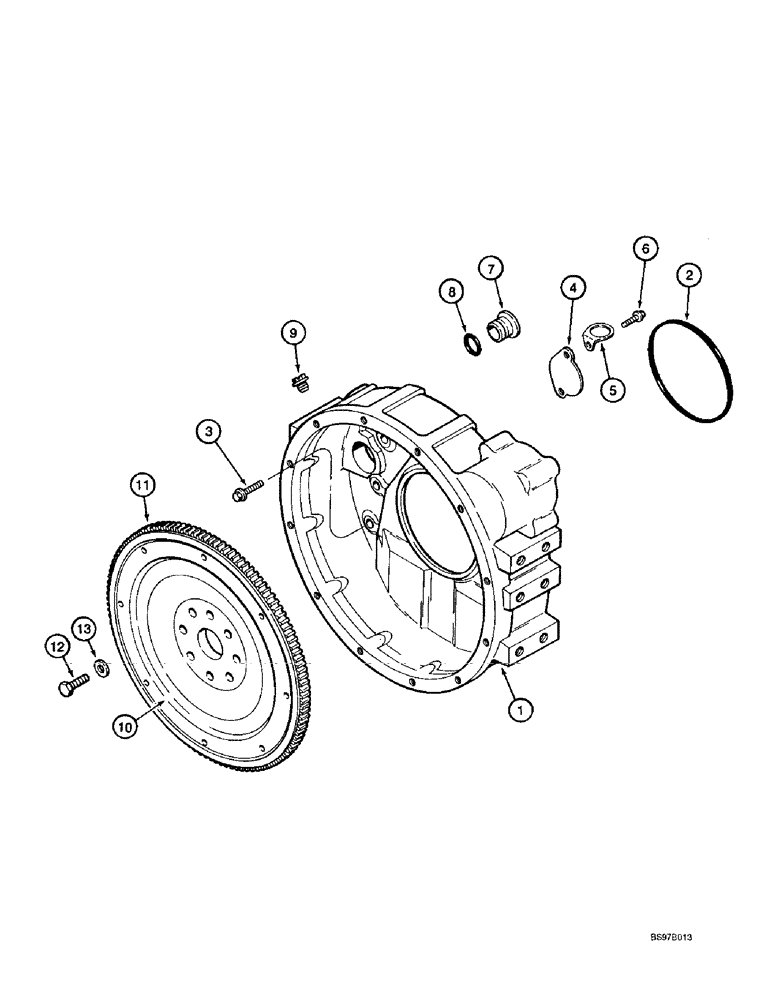

Запчасти Case IH 4391T (2-68) - FLYWHEEL AND HOUSING, 4-390, 4T-390 AND 4TA-390 EMISSIONS CERTIFIED ENGINES (02) - ENGINE

1

J931627

HOUSING

- flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J925234

PLATE

- cover

1шт.

5

J928989

CLIP

- retaining

1шт.

6

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

2шт.

7

J910248

PLUG

- flywheel housing, sealing

1шт.

8

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

9

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.

10

J914432

FLYWHEEL

ASSEMBLY - engine

1шт.

11

J901774

GEAR,Flywheel

GEAR - ring

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special

8шт.
