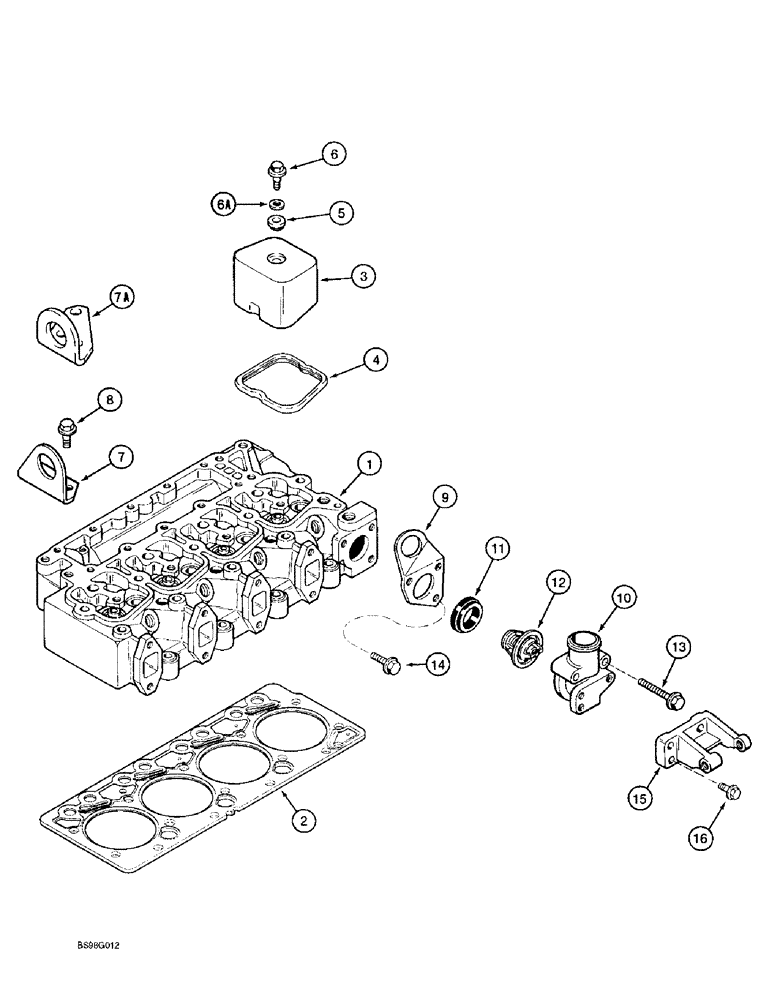

Запчасти Case IH 4391T (2-50) - CYLINDER HEAD COVERS, 4-390, 4T-390 AND 4TA-390 EMISSIONS CERTIFIED ENGINES (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see page 2-53 or 2-55 for correct cylinder head and parts list

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

- head, standard

1шт.

2

J283336

GASKET

- head, 2 notches, 0.25 mm overthick

1шт.

2

J283338

GASKET

- head, 3 notches, 0.50 mm overthick

1шт.

3

J928404

COVER

- rocker arm

4шт.

4

J930906

GASKET

SEAL - rocker arm cover

4шт.

5

J928406

ISOLATOR

- noise

4шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

7

J908118

BRACKET

- lifting, rear, 4T-390 engine and 4TA-390 engine

1шт.

7a

J916794

SUPPORT

BRACKET - lifting, rear, 4-390 engine

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front

1шт.

10

J914409

HOUSING

- thermostat

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat

1шт.

11

J923331

GASKET

- thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

1шт.

15

J923387

SUPPORT

- alternator mounting

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

3шт.
