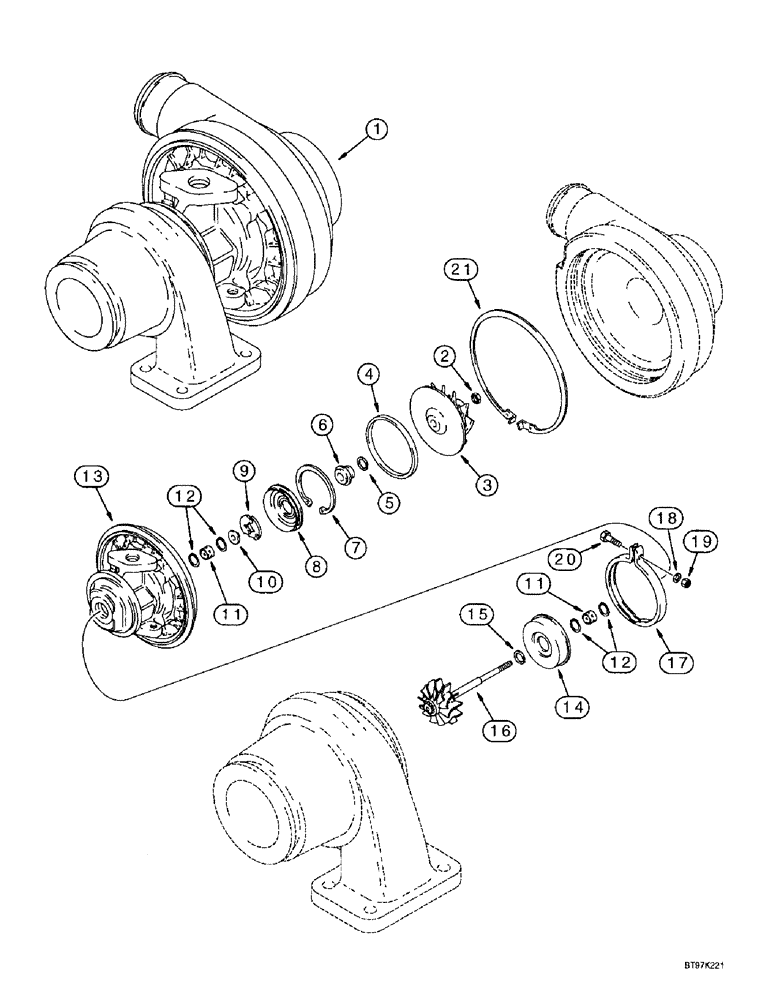

Запчасти Case IH 4391T (2-40) - TURBOCHARGER ASSEMBLY, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802908

TURBOCHARGER

KIT - turbocharger, large frame, includes new turbocharger assembly, (1) J519807 turbo oil drain tube gasket and (1) J709861 turbocharger mounting gasket, not shown

1шт.

JR802908

REMAN-TURBOCHARGER

Kit, Turbocharger, Engine, Remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC537886

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

1

J580234

HOUSING ASSY.

CENTER HOUSING ASSEMBLY - turbocharger

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - slit ring

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL - oil, not shown

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - with shaft

1шт.

17

J531670

CLIP

CLAMP - adjustable

1шт.

18

J535971

WASHER

- flat, special

1шт.

19

J531582

NUT

- hex

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

BOLT - hex

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575205

1шт.

21

J535800

RING, SNAP

RING - snap

1шт.

J575205

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Refs. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19 and 20.

1шт.
