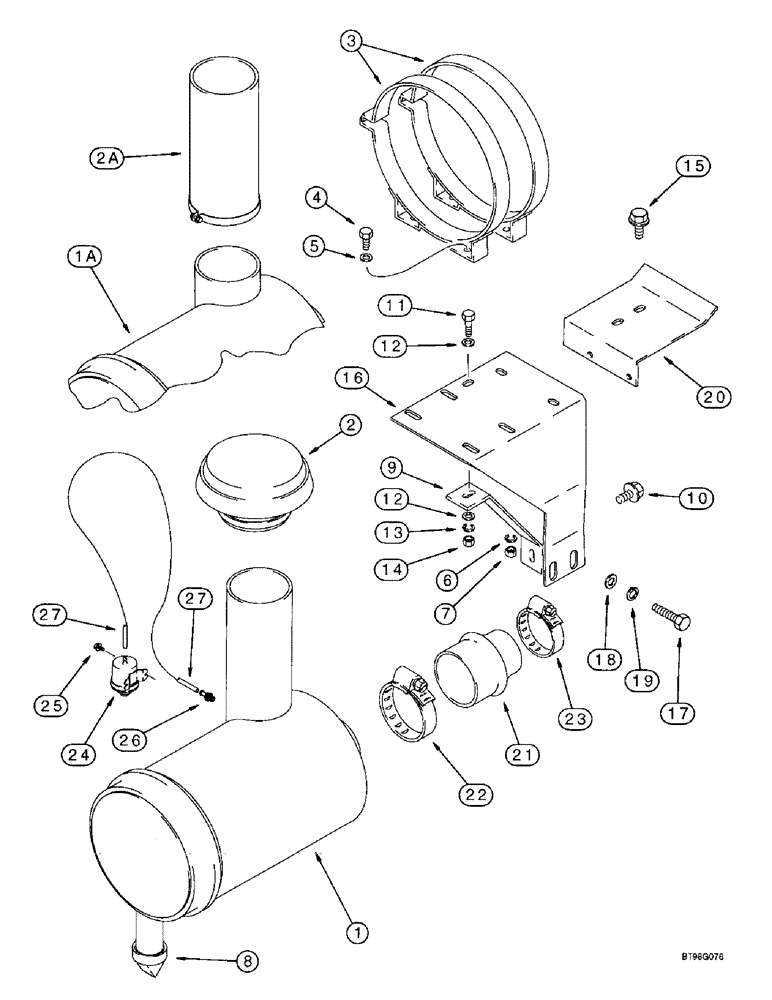

Запчасти Case IH 4391T (2-08) - AIR INDUCTION SYSTEM, 4391T AND 4391TA UNITS (02) - ENGINE

1

299173A1

CLEANER

ASSEMBLY - air, parts list page 2-13

1шт.

1a

240553A1

AIR CLEANER

CLEANER ASSEMBLY - air, parts list page 2-13, no longer available, order 299173A1 air cleaner for service

1шт.

2

S512971

CAP

- air inlet tube

1шт.

2a

325668A1

EXTENSION

- air cleaner inlet, use with 240553A1 air cleaner assembly

1шт.

3

A16574

BAND

CLAMP - air cleaner, includes hardware

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

6

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

A184939

VALVE

- dust

1шт.

9

277898A1

BRACE

BRACKET - air cleaner support

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Air cleaner support bracket to cylinder head Hex Flg, M12 x 25, 8.8

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Air cleaner support bracket to air cleaner mounting bracket Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

13

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 25 mm

2шт.

16

277901A1

BRACKET

- mounting, air cleaner to flywheel housing

1шт.

17

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Bracket to upper side holes to flywheel housing Hex, M12 x 35, 8.8, Full Thd

2шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

277892A1

SHIELD

- heat, air cleaner

1шт.

21

A56094

HOSE

- adapter, air cleaner

1шт.

22

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Air cleaner end of reducer hose #64, 3.56/4.50 Type F Worm

1шт.

23

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adj, 2-13/16 - 3-3/4 inch dia, turbo end of reducer hose

1шт.

24

533917C2

GAUGE

INDICATOR - air restriction

1шт.

25

280-14412

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - self-tapping, hex washer head, No. 8 NC x 3/4 inch

2шт.

26

217-208

FITTING

ADAPTER - straight, 1/8 stem end x 1/8 inch PT, outlet of air cleaner

1шт.

27

281722A1

HOSE - 381 mm (15 inch) long, cut from 990015C1 bulk hose, see below, air cleaner to restriction indicator

1шт.

990015C1

LARGE HOSE

HOSE - bulk, 2.5 (3/32) ID x 7620 mm (300 inch) long

1шт.
