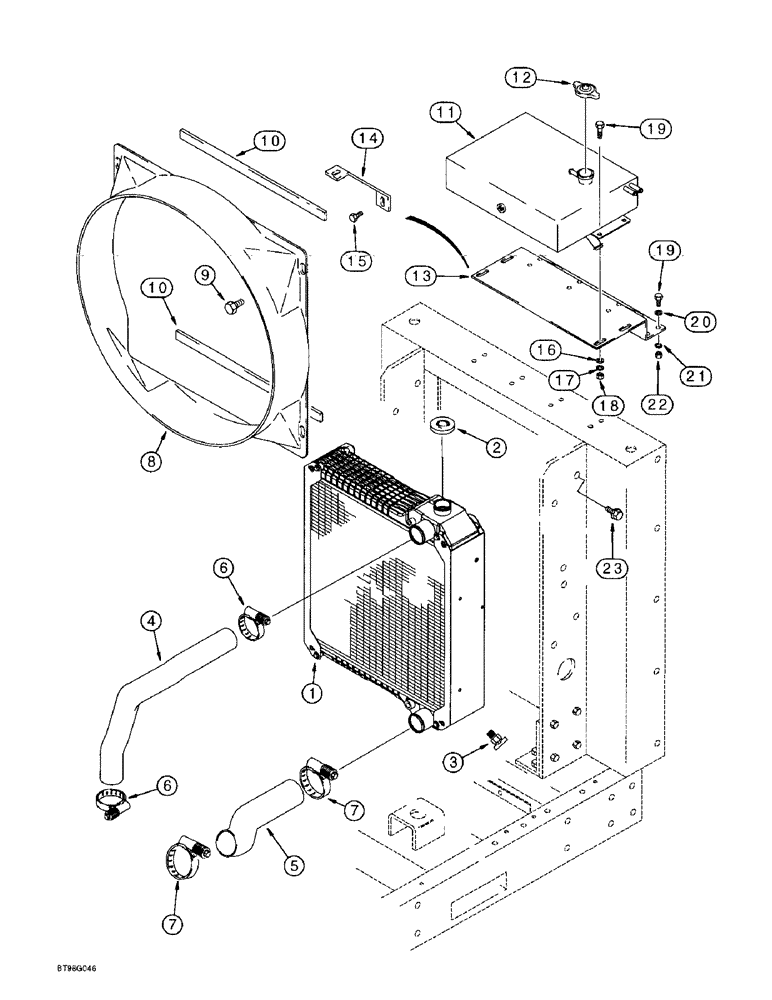

Запчасти Case IH 4391 (2-02) - RADIATOR, DEAERATION TANK AND MOUNTING (02) - ENGINE

1

234876A1

RADIATOR

ASSEMBLY - engine coolant, 4391 and 4391T Units, parts list page 2-5

1шт.

1

239739A1

RADIATOR

ASSEMBLY - engine coolant, heavy duty, 4391TA Units, parts list page 2-5

1шт.

2

253858A1

PLUG

CAP - radiator, non-opening

1шт.

3

217-92

COCK

VALVE - drain, 1/4 inch PT

1шт.

4

307861A1

RADIATOR HOSE,300.00 mm

Upper 300.00 mm

1шт.

5

296624A1

RADIATOR HOSE

Lower

1шт.

6

254026A1

HOSE CLAMP,44.45mm - 66.67mm

CLAMP, HOSE - adj, 1-3/4 - 2-5/8 inch dia

2шт.

7

L115548

CLAMP,57.15mm - 79.38mm

- adj, 2-1/4 - 3-1/8 inch dia

2шт.

8

186433A1

SHROUD

- fan

1шт.

9

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Fan shroud to radiator

4шт.

10

190562A2

SEALING STRIP,30mm W x 546mm L x 12.7mm Thk

- adhesive back, 546 mm (21-1/2 inch) long, between fan shroud and radiator at top and bottom

2шт.

11

298029A3

TANK

- deaeration

1шт.

12

A170241

RADIATOR CAP

CAP, RADIATOR, 15 psi, deaeration tank

1шт.

13

236017A1

BRACKET

- support, deaeration tank

1шт.

14

279618A1

BRACKET

BRACE - support, deaeration tank

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Lower hole in brace to radiator support

1шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

17

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(4) for tank to support bracket and (8) for support bracket to radiator support Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

21

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

22

425-106

NUT,3/8"-16, Cl 5

8шт.

23

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 25 mm, Radiator support to radiator

10шт.
