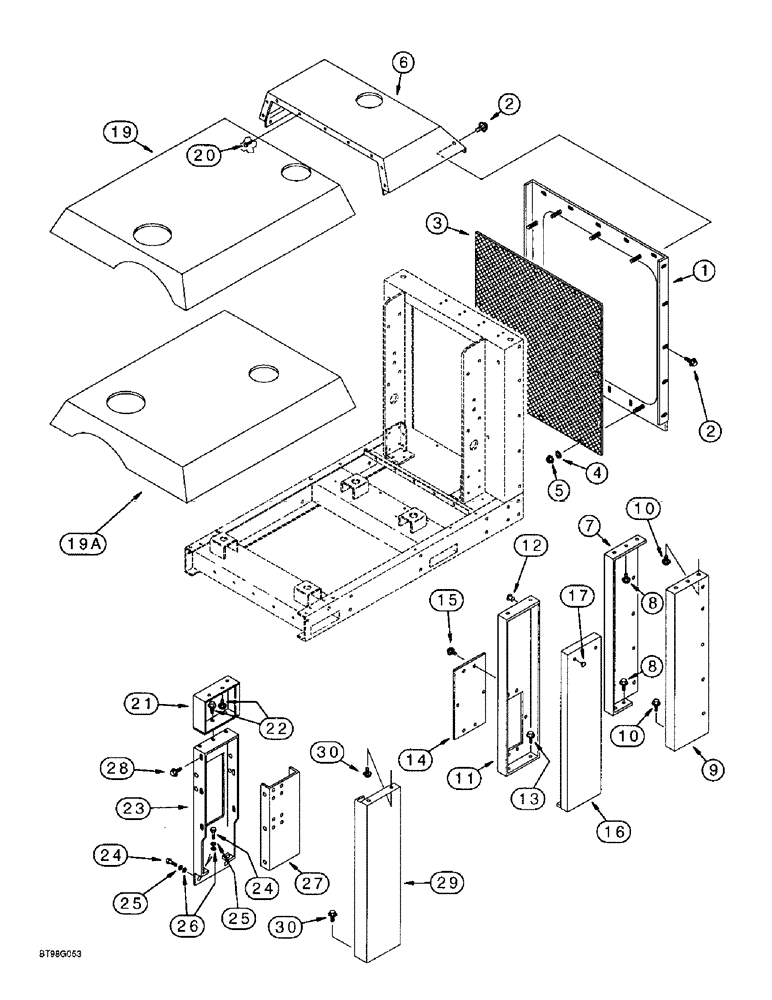

Запчасти Case IH 4391 (9-04) - GRILLE, HOOD AND PANELS (09) - CHASSIS

1

277874A1

SHROUD

- front, lower

1шт.

2

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

20шт.

3

277882A1

SCREEN

GRILLE - radiator, screen

1шт.

4

495-31022

WASHER,#10

12шт.

5

231-52409

FLANGE NUT,Flg, USR, #10-32

12шт.

6

277877A1

COVER

SHROUD - front, upper

1шт.

7

281480A1

COVER

PANEL - side, front, left-hand

1шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

10шт.

9

281481A1

COVER

PANEL - side, front, right-hand

1шт.

10

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

10шт.

11

240698A1

PANEL

- side, left-hand, removable

1шт.

12

1347659C1

KNOB

- plastic, panel

2шт.

13

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

14

102321A1

PANEL

- access

1шт.

15

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

BOLT, Hex Flg, #10-32 x 1/2

6шт.

16

1347658C1

PANEL

- side, right-hand, removable

1шт.

17

1347659C1

KNOB

- plastic, panel

2шт.

18

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

19

309693A1

HOOD

- engine, 4391T and 4391TA Units

1шт.

19a

324452A1

HOOD

- engine, 4391 Units

1шт.

20

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

7шт.

21

224286A1

PANEL

- engine, between hood and rear support, Units with hoods

1шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

6шт.

23

248949A1

PANEL

SUPPORT - hood and instrument panel, rear, left-hand

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

25

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

27

248950A1

PANEL

COVER - instrument panel, rear

1шт.

28

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

BOLT, Hex Flg, #10-32 x 1/2

6шт.

29

1347715C1

SUPPORT

PANEL - support, hood right-hand rear, Units with hoods

1шт.

30

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.
