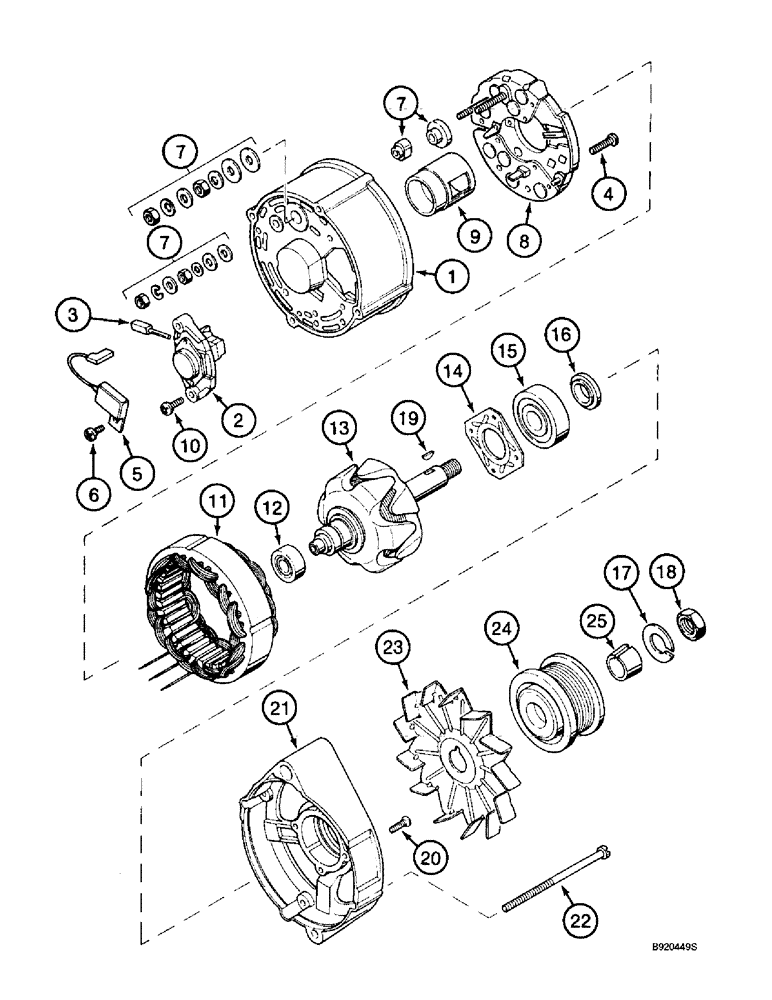

Запчасти Case IH 4391 (4-08) - ALTERNATOR ASSEMBLY, A187873 (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 65 Amp

1шт.

1

A187903

COVER

HOUSING - collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR - voltage

1шт.

3

1964968C1

COMMUTATOR BRUSH

BRUSH - alternator

1шт.

4

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT - with washer, rectifier bridge retaining

2шт.

5

3079134R1

CAPACITOR

CAPACITOR - alternator

1шт.

6

1964969C1

SCREW

SCREW - special, capacitor retaining

1шт.

7

A187904

MULTIPOLE CONNECTOR

SET - hardware, terminal

1шт.

8

A187917

RECTIFIER

RECTIFIER - alternator

1шт.

9

A187899

INNER SHIELD

SHIELD - alternator

1шт.

10

A187504

SCREW

BOLT - hex flange, special, voltage regulator retaining

2шт.

11

1964966C1

STATOR

STATOR - alternator

1шт.

12

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball, rotor, collector ring end

1шт.

13

1964964C1

ROTOR

ROTOR - alternator

1шт.

14

A187901

FIXING PLATE

PLATE - bearing retaining, drive end cover

1шт.

15

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT - rotor retaining

1шт.

16

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - rotor shaft

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

19

NSS

NOT SOLD SEPARAT

KEY - pulley retainer, not used in A187873 alternator

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - bearing retainer plate

4шт.

21

A187994

HOUSING

HOUSING - drive end

1шт.

22

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - slotted, special, housing retainer

4шт.

23

221425R1

FAN

FAN - alternator, not included with alternator assembly, order separately

1шт.

24

J908560

PULLEY

PULLEY - drive, not included with alternator assembly, order separately

1шт.

25

J908563

RETAINER

RETAINER - pulley, not included with alternator assembly, order separately

1шт.
