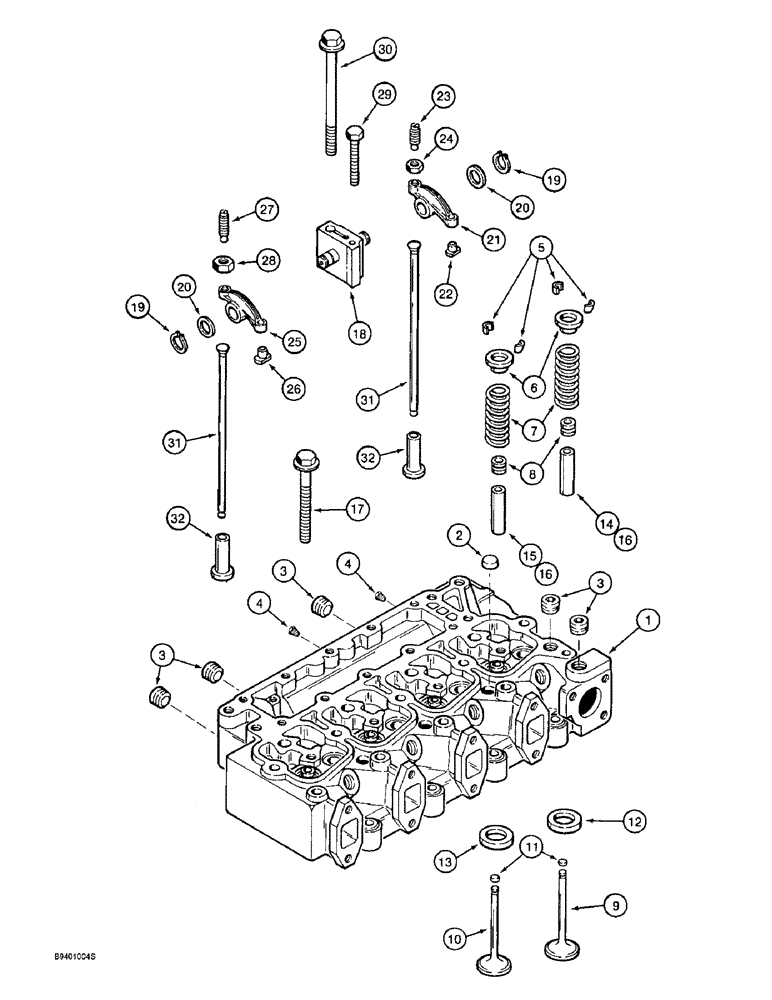

Запчасти Case IH 4391 (2-52) - CYLINDER HEAD AND VALVE MECHANISM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR933494

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC929736

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head for credit when using a remanufactured assembly

1шт.

1

J933494

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves

1шт.

1

J920005

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, , One removed to install temperature sending unit Sq Soc, 1/2"-14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER - valve

16шт.

6

J900299

RETAINER

- valve spring

8шт.

7

J932453

SPRING

- valve

8шт.

8

J901097

SEAL

- valve

8шт.

9

J920867

VALVE

- intake

4шт.

10

J920868

VALVE

- exhaust

4шт.

11

J280911

WEAR PAD

PAD - wear, service repair only for valve stem tip, for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm OD

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

4шт.

19

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

20

J900245

WASHER

- thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

25

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

4шт.

31

J923262

PUSH ROD

ROD - push, rocker arm

8шт.

32

J931623

TAPPET

- valve, push rod

8шт.
