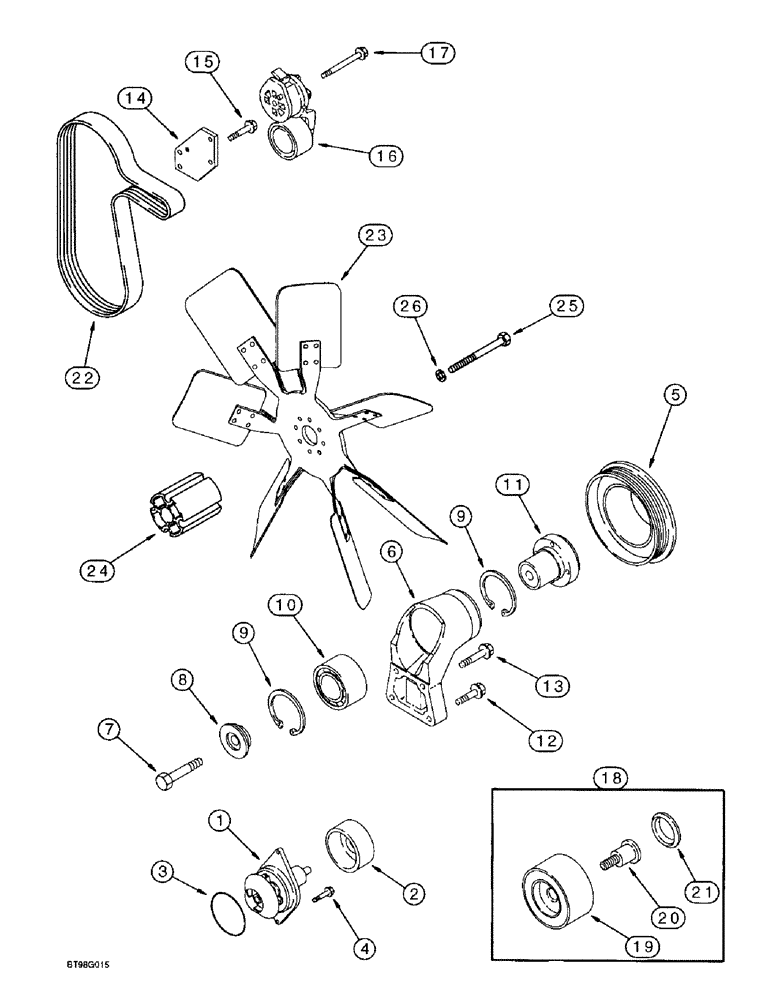

Запчасти Case IH 4391 (2-24) - WATER PUMP, FAN AND BELT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802970

PUMP, WATER

KIT - water pump

1шт.

J286278R

REMAN-WATER PUMP

4391

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914461

PULLEY

- fan, 207 mm diameter, 0.87 to 1 ratio

1шт.

6

J911205

BRACKET

SUPPORT - fan

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

- fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

11

J911924

HUB

- fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

2шт.

13

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

14

J925194

SUPPORT

BRACKET - belt tensioner

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

16

J934817

BELT TENSIONER

TENSIONER - belt

1шт.

17

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

18

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J934817 belt tensioner, item 16

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

22

J911573

V-BELT,27.92mm W x 1562.1mm L, 8 Ribs

Fan 3.56 mm W x 1562.10 mm L, 8 Ribs

1шт.

23

309308A1

FAN

- engine

1шт.

24

A189318

SPACER

- fan mounting

1шт.

25

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

- hex, 10 - 1.5 x 110 mm

4шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.
