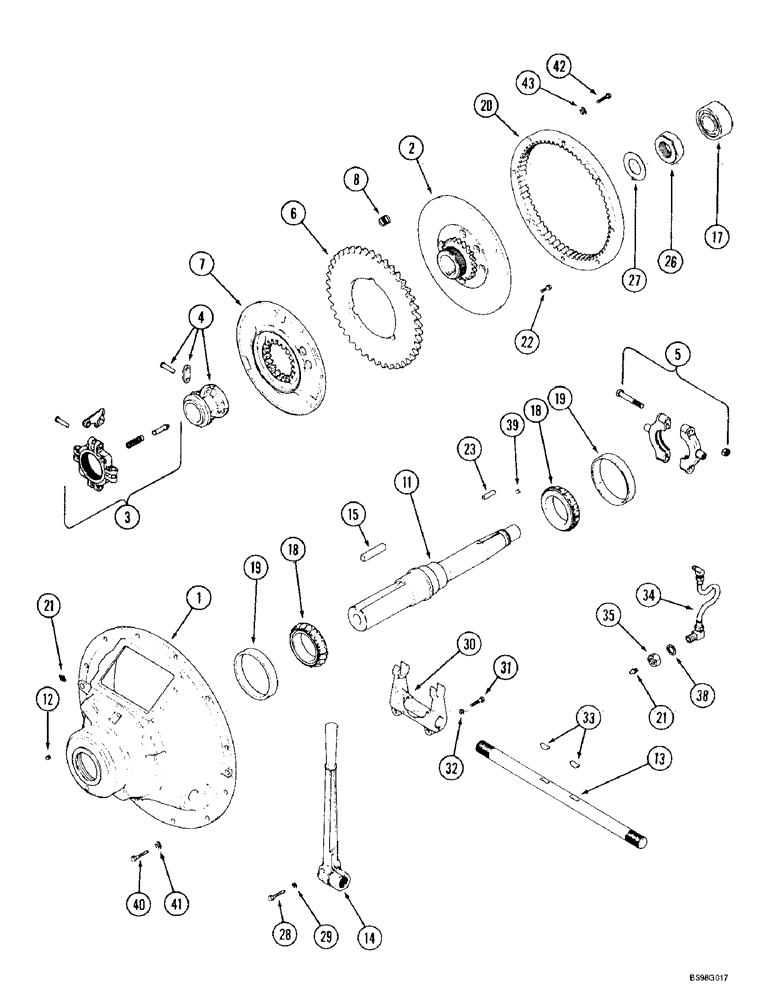

Запчасти Case IH 4391 (2-20) - PTO CLUTCH, 4391 AND 4391T UNITS (02) - ENGINE

1347632C1

CLUTCH

ASSEMBLY - PTO, 10 inch

1шт.

1

A44289

HOUSING

- clutch

1шт.

2

A44296

PLATE

- hub and back

1шт.

3

A40189

YOKE

ASSEMBLY - adjusting

1шт.

4

A40191

SLEEVE

ASSEMBLY - sliding

1шт.

5

A31140

COLLAR

ASSEMBLY - clutch sleeve

1шт.

6

1347798C1

PLATE

- driving

1шт.

7

A44298

PLATE

- floating

1шт.

8

A10441

SPRING

- release

6шт.

11

A44290

SHAFT

- clutch

1шт.

12

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- hex socket headless, 1/4 inch PT, replaces 221-841 plug

1шт.

13

37346D

SHAFT

- operating

1шт.

14

1347799C1

LEVER

- hand, clutch

1шт.

15

A40305

KEY

- square, 3/8 x 3/8 x 2-1/2 inch

1шт.

17

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

BEARING - ball

1шт.

18

ST2026

BEARING ASSY,63.5mm ID x 21.996mm

CONE - tapered roller bearing

2шт.

19

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing, 4-5/16 inch OD, replaces A26744 cup

2шт.

20

A44293

RING

- driving

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

22

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

23

Q67

KEY,1/4" Sq x 1 1/8", Par

- square, 1/4 x 1-1/8 inch

1шт.

26

A40184

NUT

- hub

1шт.

27

A9273

LOCK WASHER

- tab lock, hub nut

1шт.

28

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

29

193-83

LOCK WASHER,Int Tooth, 5/16"

WASHER - heavy duty, internal tooth lock, 5/16 inch

1шт.

30

B50820

FORK

YOKE - throwout

1шт.

31

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

32

193-78

LOCK WASHER,3/8"

WASHER - heavy duty, internal tooth lock, 3/8 inch

2шт.

33

A44148

KEY

- Woodruff

2шт.

34

1347801C1

HOSE

- flexible, 311 mm (12-1/4 inch) long

1шт.

35

25-1110

NUT,5/8"-18, G5

- hex, 5/8 inch NF

1шт.

38

193-84

LOCK WASHER,5/8"

WASHER - heavy duty, internal tooth lock, 5/8 inch

1шт.

39

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket headless, 5/16 NC x 5/16 inch, cup point

1шт.

40

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

41

892-11010

LOCK WASHER,M10

12шт.

42

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

43

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.
