(2-14) - AIR CLEANER ASSEMBLY, 4391 UNITS

Запчасти Case IH 4391 (2-14) - AIR CLEANER ASSEMBLY, 4391 UNITS (02) - ENGINE

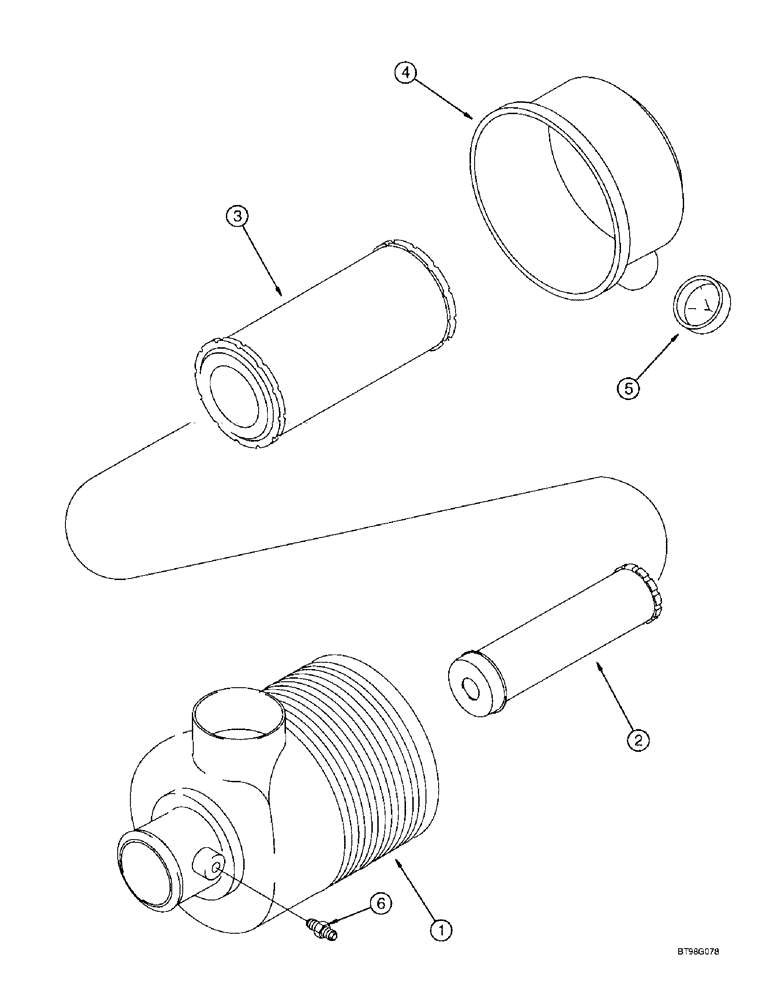

Схема запчастей Case IH 4391 - (2-14) - AIR CLEANER ASSEMBLY, 4391 UNITS (02) - ENGINE
1
6
5
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

236292A1

CLEANER

ASSEMBLY - air

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

222422A1

AIR FILTER

ELEMENT - secondary

1шт.

3

222421A1

AIR FILTER

ELEMENT - primary

1шт.

4

322623A1

COVER

- air cleaner

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

POPPET, VALVE, dust, evacuator

1шт.

6

D36264

FITTING

ADAPTER - air restriction indicator, air cleaner

1шт.
