(10.001.01[01]) - ENGINE

Запчасти Case IH ISM N844 (10.001.01[01]) - ENGINE (10) - ENGINE

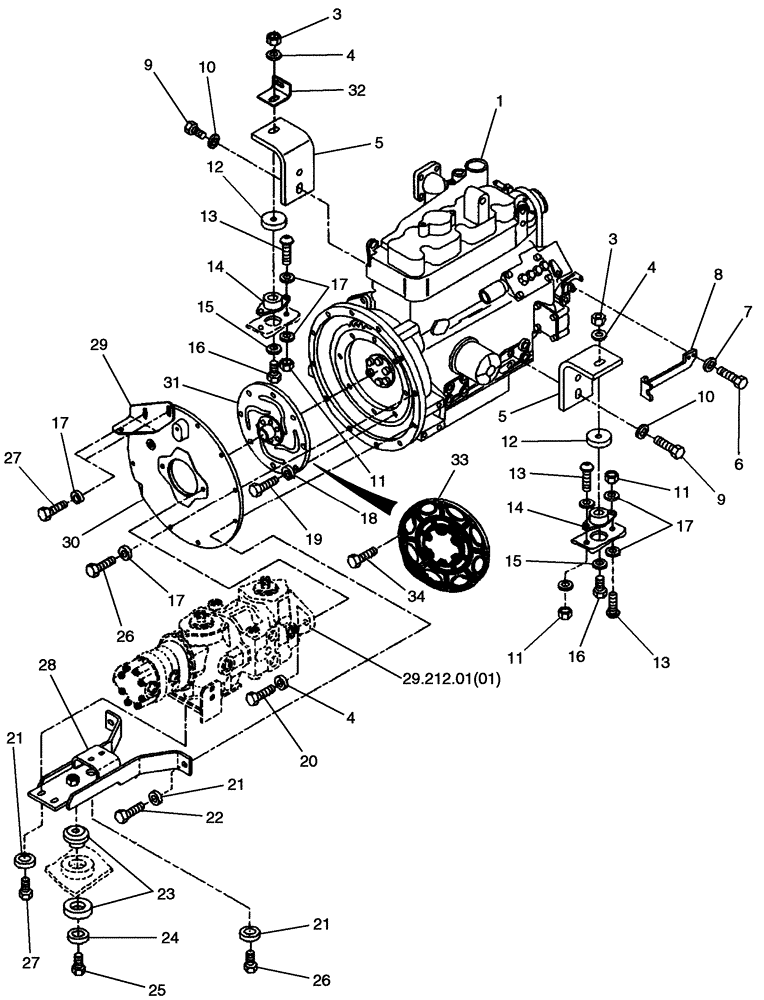

Схема запчастей Case IH ISM N844 - (10.001.01[01]) - ENGINE (10) - ENGINE
34
17
31
21
11
27
28
14
22
26
1
4
13
10
21
8
14
16
12
4
32
5
9
24
15
13
17
4
19
17
13
5
15
11
9
29.212.01(01)
25
6
11
3
3
23
7
18
26
27
29
33
16
20
10
12
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

SBA133790

ENGINE

Long Block Service Engine; Does Not Include Starter, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Altenator Or Mounting Parts, Exhaust Manifold Or Gasket

1шт.

2

SBA133790R

REMAN-REPLACEMENT EN

Long Block Service Engine; Does Not Include Starter, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Altenator Or Mounting Parts, Exhaust Manifold Or Gasket

1шт.

2

SBA133790ER

REMAN-REPLACEMENT EN

Long Block Service Engine; Does Not Include Starter, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Altenator Or Mounting Parts, Exhaust Manifold Or Gasket

1шт.

2

SBA133790EPAC

CORE-EPA ENGINE

Return Number

1шт.

3

88871

NUT,1/2"-13, GC

2шт.

4

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

5

86545777

ANGLE

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

8

86501115

ENGINE MOUNT

1шт.

9

87357989

BOLT,M14 x 1.5 x 38.9mm OAL, Cl 8.8, Full Thd

4шт.

10

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

11

9628503

NUT,3/8"-16, G5

4шт.

12

9844141

CUP

2шт.

13

87499

HEX SOC SCREW,BTN HD, 3/8" - 16 x 7/8"

4шт.

14

9616607

INSULATOR

2шт.

15

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

2шт.

16

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

19

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

20

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

21

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

6шт.

22

280589

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

2шт.

23

9844553

INSULATOR

1шт.

24

719922

WASHER,M17 x 63 x 1/4" Thk

1шт.

25

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

1шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

27

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

28

86567313

SUPPORT

1шт.

29

86567198

BRACKET

1шт.

31

86521866

DISC,242.6mm OD

1шт.

32

86606008

ANGLE

1шт.

87686710

SERVICE KIT

Flex Plate Replacement Kit; Incl Ref 33, 34 And Instructions

1шт.

33

87670983

DISC

Includes Hub And Plate

1шт.

34

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.
