(10.304.01) - OIL PUMP & SUCTION FILTER

Запчасти Case IH ISM N844 (10.304.01) - OIL PUMP & SUCTION FILTER (10) - ENGINE

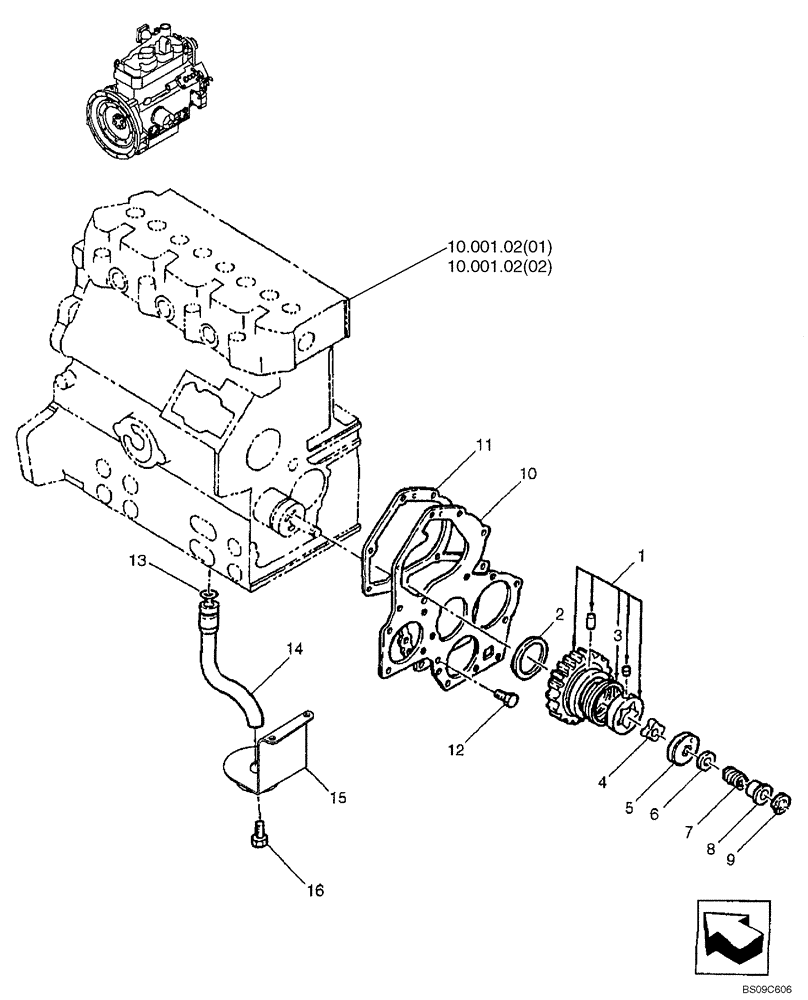

Схема запчастей Case IH ISM N844 - (10.304.01) - OIL PUMP & SUCTION FILTER (10) - ENGINE
10
5
8
10.001.02(01)
3
12
7
2
6
13
4
10.001.02(02)
15
9
11
14
1
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA165026230

IDLER GEAR

Incl. Ref. 3

1шт.

1

SBA165026230R

REMAN-ENG OIL PUMP

1шт.

1

SBA165026230C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

SBA199266270

WASHER, THRUST

1шт.

3

SBA198216821

SPRING

1шт.

4

SBA140166250

ROTOR

1шт.

5

SBA140116220

COVER

Oil Pump

1шт.

6

SBA199286150

SHIM,0.1mm Thk

1шт.

6

SBA199286160

SHIM,0.15mm Thk

1шт.

6

SBA199286170

SHIM,0.2mm Thk

1шт.

6

SBA199286180

SHIM,0.5mm Thk

1шт.

7

SBA198216720

SPRING

1шт.

8

SBA199236540

COLLAR

1шт.

9

SBA036800010

SNAP RING

1шт.

10

SBA165166650

PLATE

PLATE, Front

1шт.

11

SBA165996540

GASKET

1шт.

12

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

13

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

14

SBA140986820

TUBE

Oil Pickup

1шт.

15

SBA140406490

FILTER SCREEN

Suction

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.
