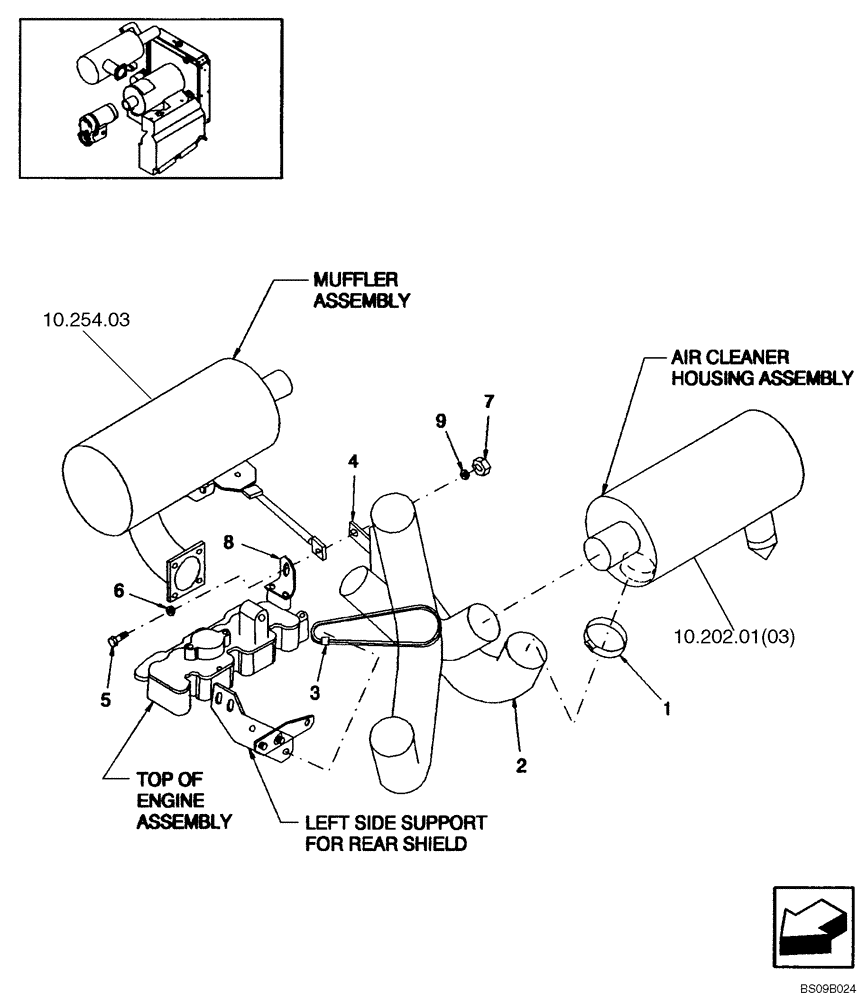

Запчасти Case IH ISM N844 (10.202.01[04]) - AIR CLEANER INLET (10) - ENGINE

1

82012728

COLLAR,50mm - 65mm, Worm Gear

1шт.

2

86515783

HOSE,57.10 mm ID x 283.00 mm, SAE J200 BC, SAE J200 CA

48.34" Long

1шт.

2

86557319

HOSE,57.10 mm ID x 388.10 mm, SAE J200-BC 710/SAE J200-CA 710

41.35" Long

1шт.

3

801895

CABLE TIE,30.63"

CABLE STRAP Cable Tie

1шт.

4

86522009

CLAMP

Hose, 3"

1шт.

5

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

If Used

1шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If Used

1шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1-3шт.

7

9628503

NUT,3/8"-16, G5

1шт.

8

86597134

BRACKET

If Used

1шт.

8

87032047

BRACKET

If Used, Start Serial: LMU013613

1шт.

8

86501211

BRACKET

If Used

1шт.

8a

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Hardware For Mounting Bracket, Ref 8

2шт.

8b

80681

LOCK WASHER,5/16"

Hardware For Mounting Bracket, Ref 8

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.
