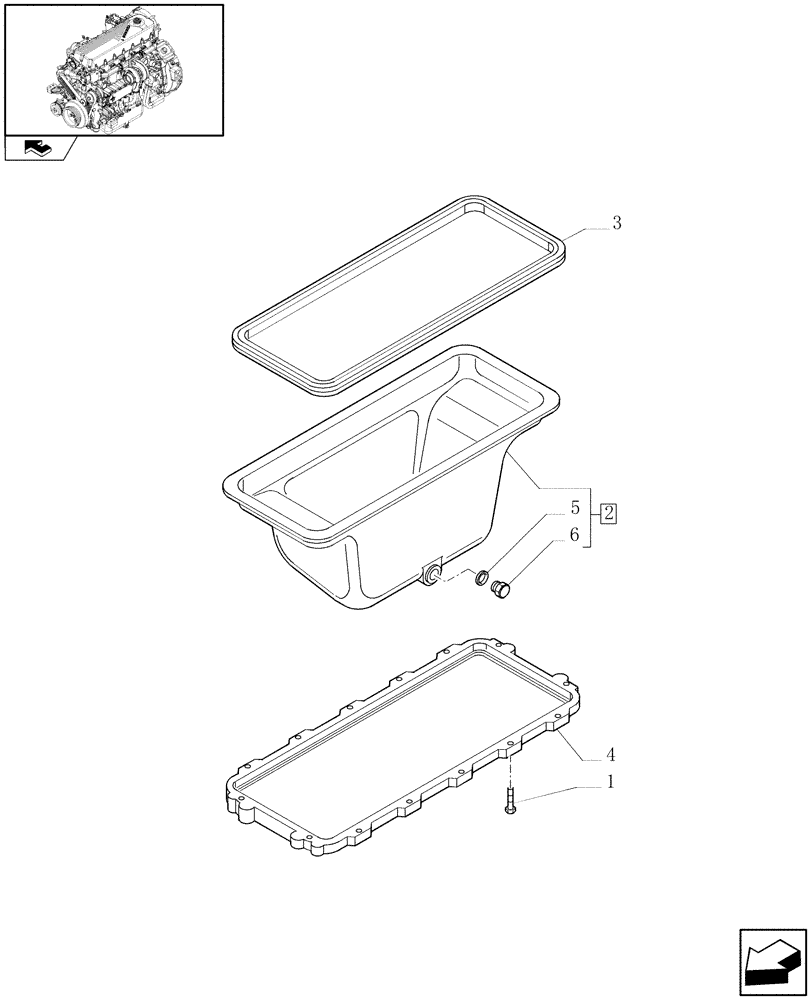

Запчасти Case IH A8800 (0.04.2) - OIL SUMP & RELATED PARTS (504143995) (10) - ENGINE

1

16587525

BOLT,M10 x 45mm

M10 x 45

26шт.

2

5801419489

ENGINE OIL PAN

ASSY

1шт.

3

504125618

GASKET

A8800 - até chassi - until serial 881099, Serial Range: -800361

1шт.

3

5801541760

GASKET

A8800 - após chassi - after serial 881100, Start Serial: 800362

1шт.

4

504143828

SPACER

1шт.

5

16508460

SEAL

D = 22 x 27 x 1.5

1шт.

6

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.
