(0.32.5) - COOLING SYSTEM LINE, TURBOCHARGER

Запчасти Case IH A8000 (0.32.5) - COOLING SYSTEM LINE, TURBOCHARGER (10) - ENGINE

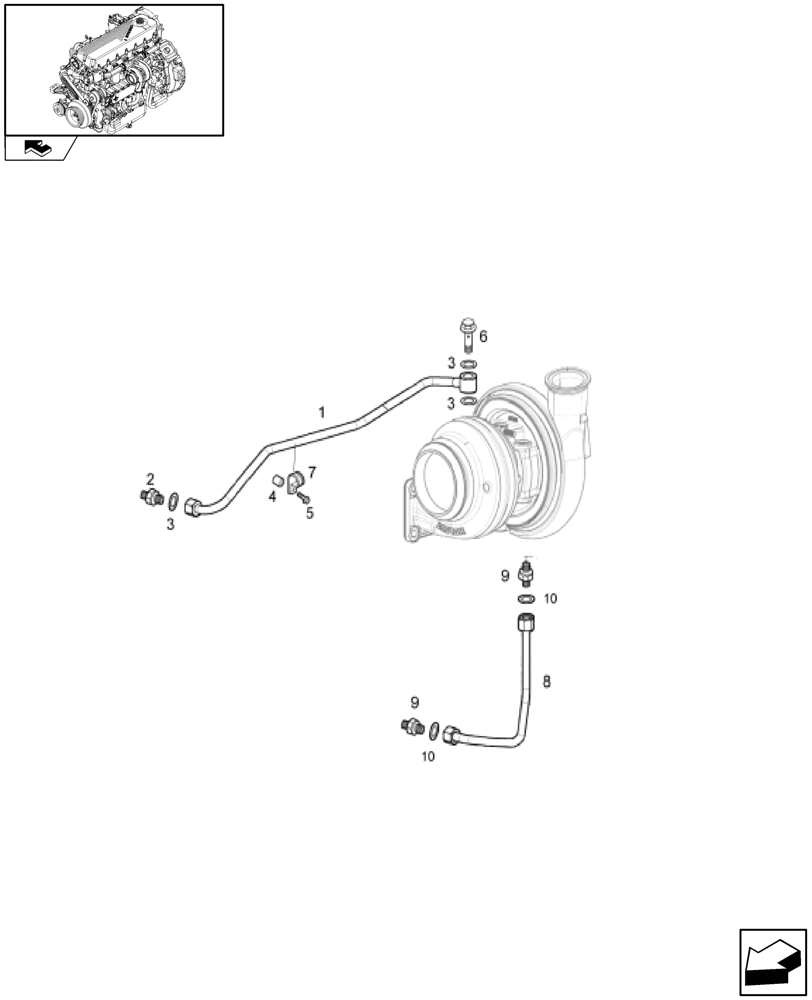

Схема запчастей Case IH A8000 - (0.32.5) - COOLING SYSTEM LINE, TURBOCHARGER (10) - ENGINE
3
8
9
3
6
10
home
2
1
5
10
7
4
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5801672969

PIPE

For engines with turbocharger cooled by water

1шт.

2

16500314

FITTING

1шт.

3

4858609

WASHER,Brass

3шт.

4

5801674293

SPACER

1шт.

5

16586824

SCREW,M8 x 45mm

1шт.

6

4864084

BANJO BOLT

1шт.

7

5801749679

CLAMP

1шт.

8

5801672964

PIPE

For engines with turbocharger cooled by water

1шт.

9

16500314

FITTING

2шт.

10

4858609

WASHER,Brass

2шт.
