(55.013.AB) - ENGINE, OIL, PRESSURE SWITCH, SENSOR

Запчасти Case IH FVAE2884X B200 (55.013.AB) - ENGINE, OIL, PRESSURE SWITCH, SENSOR (55) - ELECTRICAL SYSTEMS

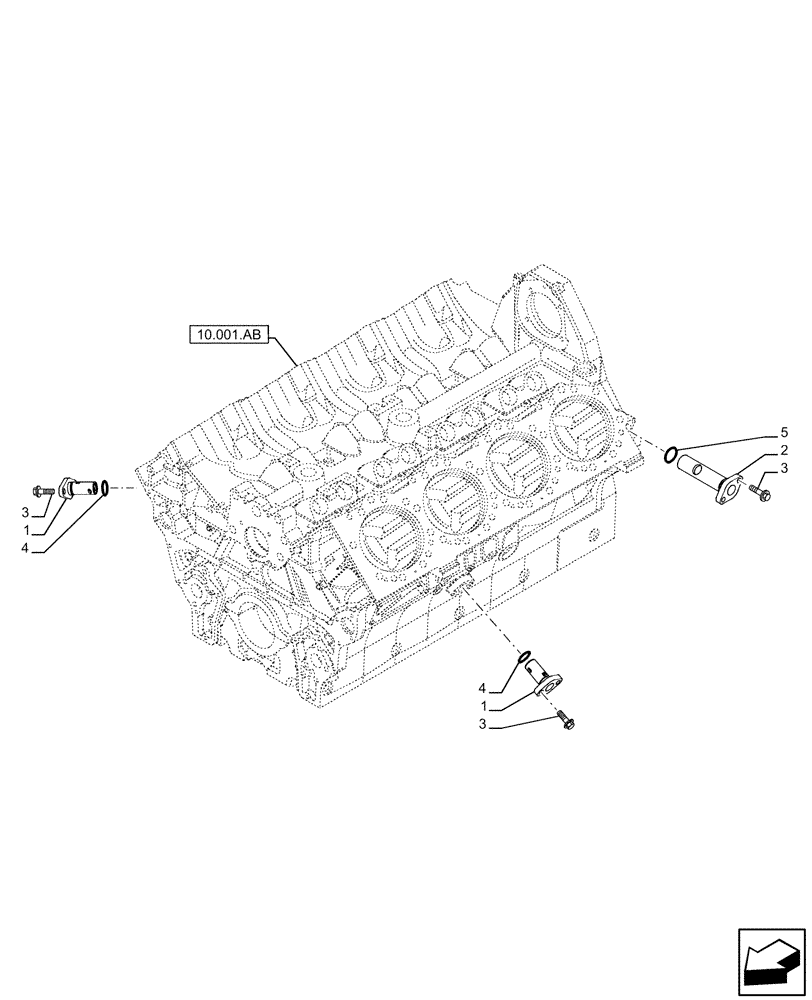

Схема запчастей Case IH FVAE2884X B200 - (55.013.AB) - ENGINE, OIL, PRESSURE SWITCH, SENSOR (55) - ELECTRICAL SYSTEMS
10.001.ab
3
3
4
1
4
3
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504073339

BY-PASS VALVE

2шт.

2

504032634

BY-PASS VALVE

Oil Pressure

1шт.

3

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

6шт.

4

14462981

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 75 Duro

2шт.

5

70935121

O-RING,-213, Cl 7, .921" ID x .139" Thk

1шт.
