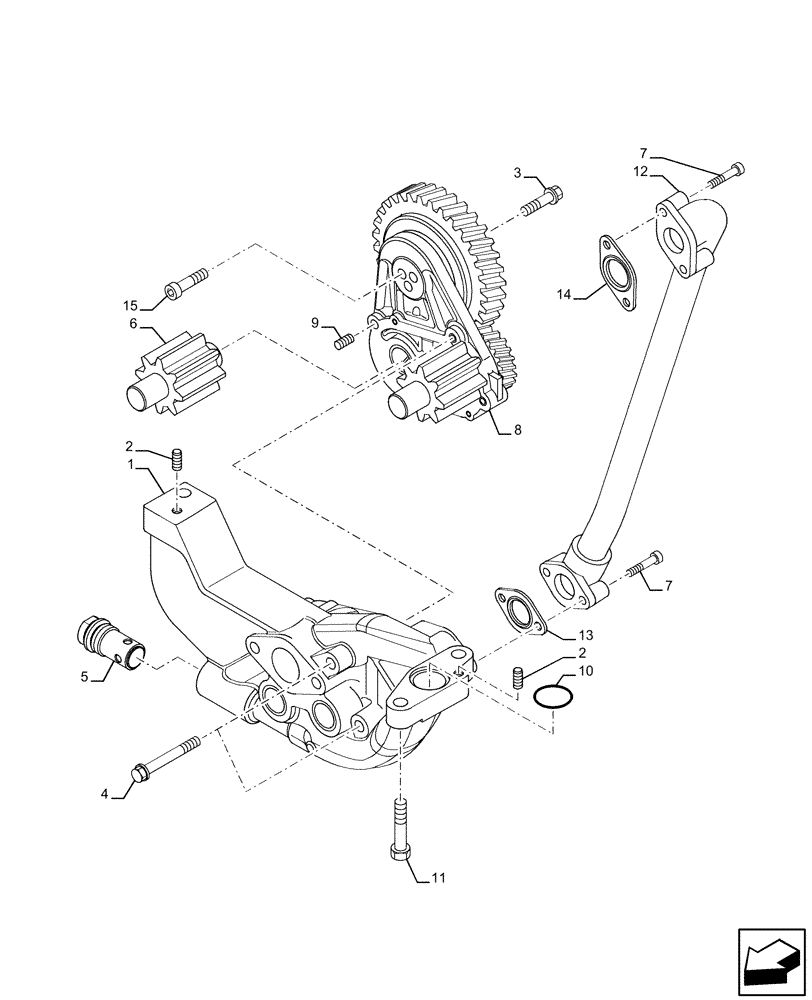

Запчасти Case IH FVAE2884X B200 (10.304.AC) - PUMP, ENGINE OIL & RELATED PARTS (10) - ENGINE

1

504115282

ENGINE OIL PUMP

1шт.

2

17275410

DOWEL,8mm Dia

4шт.

3

16673835

BOLT,Hex, M8 x 30mm

2шт.

4

16592625

SCREW,M8 x 80mm

2шт.

5

500359679

SAFETY VALVE

M8 x 35mm

1шт.

6

504038627

GEAR

1шт.

7

16707134

SCREW,M8 x 20mm

4шт.

8

504115287

COVER

1шт.

9

17275310

DOWEL

M8 x 30mm

3шт.

11

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

12

504100178

PIPE

1шт.

13

504049043

GASKET

1шт.

14

504049044

GASKET

M8 x 30mm

1шт.

15

16690724

SCREW,M8 x 30mm

3шт.
