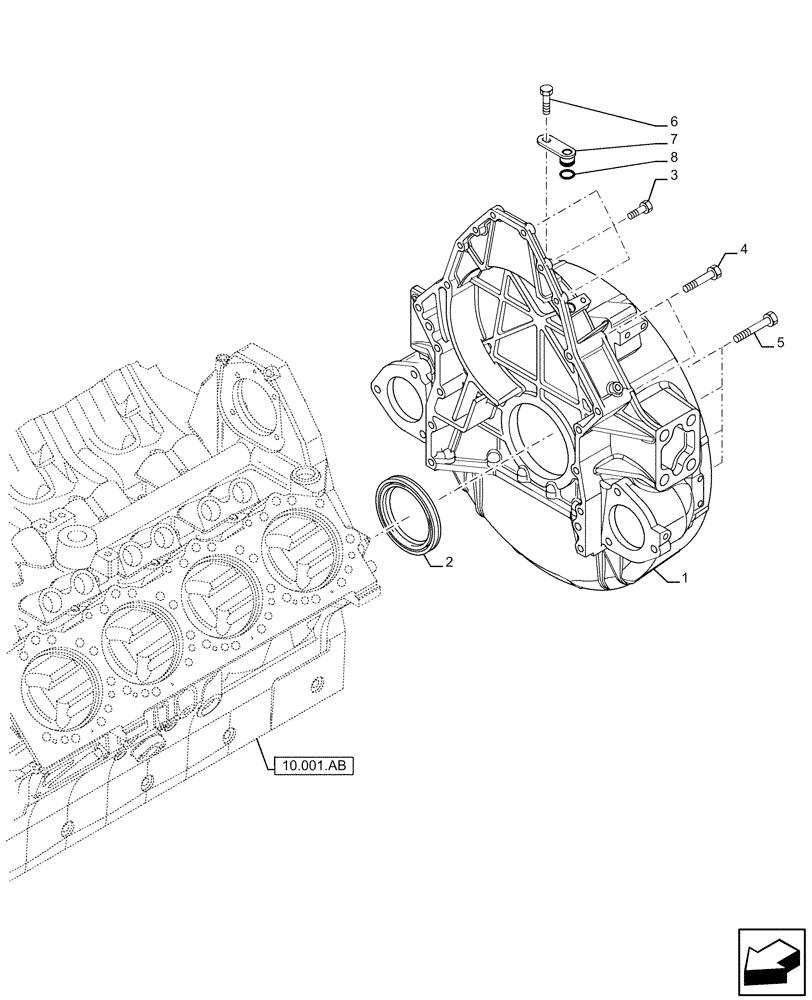

Запчасти Case IH FVAE2884X B200 (10.103.AK) - FLYWHEEL CASE (10) - ENGINE

1

504058801

HOUSING

1шт.

2

504036095

SHAFT SEAL

1шт.

2

504288867

SEAL

1шт.

3

16677935

SCREW

M12 x 35mm

6шт.

3

16677934

SCREW,M12 x 1.75 x 35mm

6шт.

4

16681335

BOLT,Hex, M14 x 90mm

8шт.

5

16681534

SCREW

M14 x 2 x 110mm

4шт.

5

16681534

SCREW

4шт.

6

16597925

BOLT,Hex, M8 x 14mm

1шт.

7

504090317

COVER

1шт.

8

17281681

O-RING,13.90mm ID x 2.60mm

1шт.
