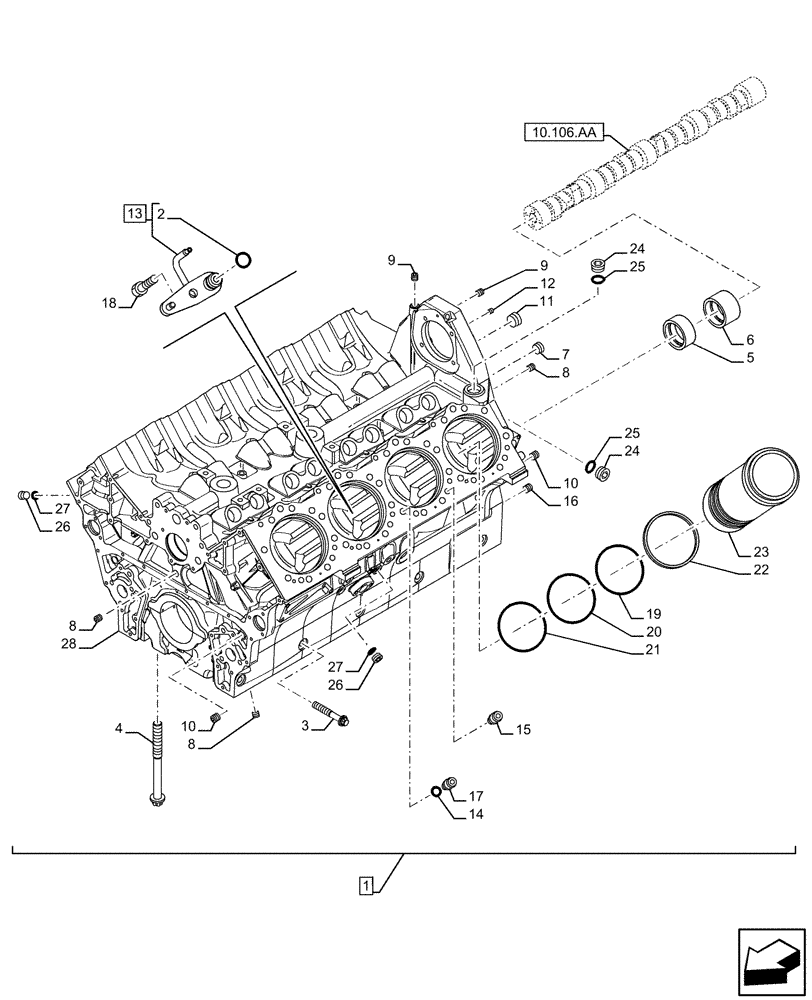

Запчасти Case IH FVAE2884X B200 (10.001.AB) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

504116336

CYLINDER BLOCK

ASSY, Incl 3 - 17, 24 - 27

1шт.

2

17278081

O-RING

10,82 x 1,78mm Dia

8шт.

3

504030440

SCREW

10шт.

4

504116246

SCREW

10шт.

5

504029407

BUSHING

4шт.

6

504029406

BUSHING

1шт.

7

98475100

PLUG

3/4X12

2шт.

8

504051237

PLUG

4шт.

9

504051236

PLUG,Threaded, 1/8"

3шт.

10

504051238

PLUG,Threaded, 3/8" Dia

4шт.

11

16995111

PLUG,M35 x 1.5

1шт.

12

504036758

SCREW

4шт.

13

504034779

JET

8шт.

14

17277981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

8шт.

15

17275610

DOWEL

8шт.

16

10838010

DOWEL

16mm Dia

2шт.

17

4671990

DOWEL

8шт.

18

16586225

BOLT,M8 x 16mm

8шт.

19

504025110

O-RING

8шт.

20

504025111

O-RING

8шт.

21

504092540

O-RING

8шт.

22

4686958

SEAL,165.3mm ID x 173.7mm OD x 0.1mm Thk

8шт.

23

504081913

SLEEVE CYLINDER

8шт.

24

16993715

PLUG

2шт.

25

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

2шт.

26

16993315

PLUG

2шт.

27

99489020

FITTING

18 x 26mm

2шт.

28

NSS

NOT SOLD SEPARAT

Cylinder Block, Incl in 1

1шт.
