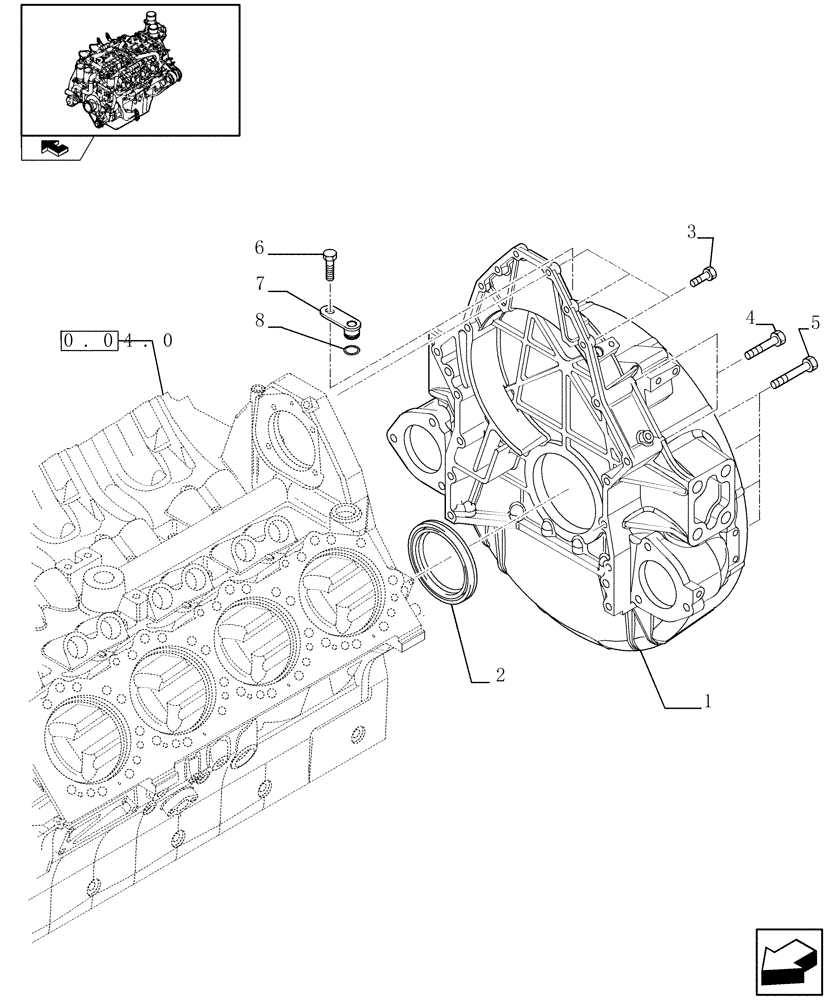

Запчасти Case IH FVAE2884X B200 (0.04.3[02]) - FLYWHEEL CASE (504080578)

1

504058801

HOUSING

1шт.

2

504036095

SHAFT SEAL

D. 135X160X13/14 mm

1шт.

3

16677934

SCREW,M12 x 1.75 x 35mm

M12X35 mm

6шт.

5

16681534

SCREW

M14X2X110 mm

4шт.

6

2852323

SCREW,M8 x 1.25 x 14mm

M8 x 14

1шт.

7

504090317

COVER

1шт.

8

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

D. 13,9 mm SP=2,6 mm

1шт.
