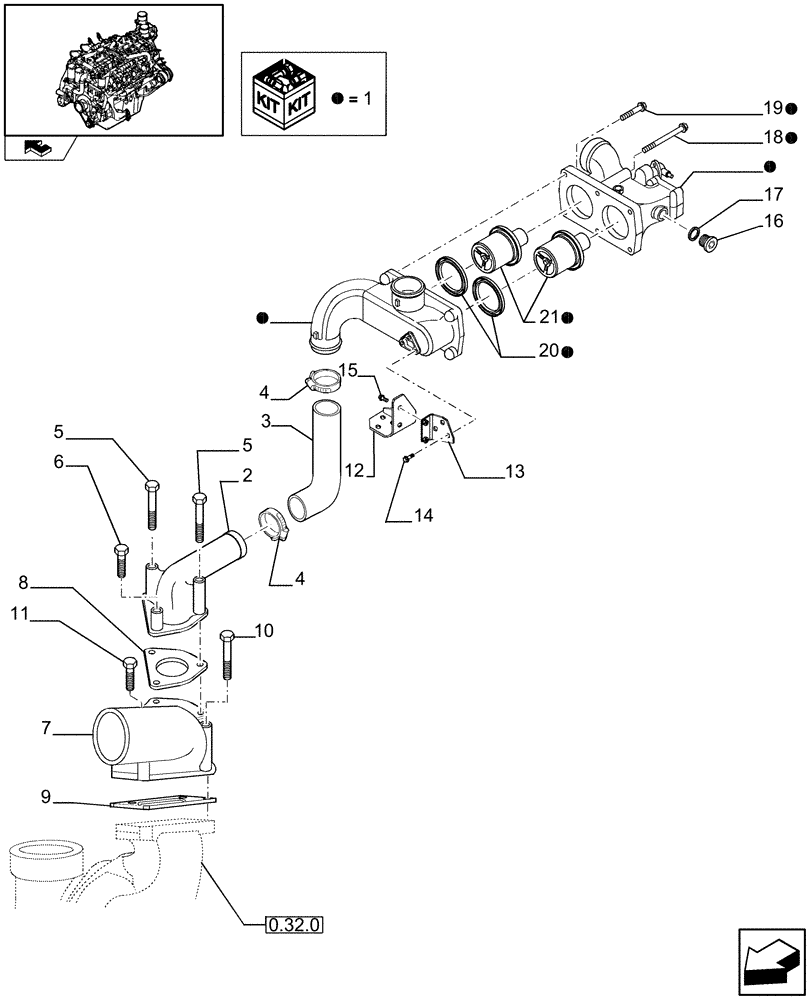

Запчасти Case IH FVAE2884X B200 (0.32.6/ B) - TEMPERATURE REGULATOR OIL HEAT EXCHANGER (504095206)

1

504114244

HOUSING

ASSY

1шт.

2

504096035

TUBE

1шт.

3

504095578

LARGE HOSE

HOSE,LARGE

1шт.

4

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

D.16-25 mm

2шт.

5

16592525

BOLT,M8 x 1.25 x 70mm

M8X70 mm

2шт.

6

16586725

BOLT,Hex, M8 x 1.25 x 40mm

M8 x 1.25 x 40

1шт.

7

504096634

TUBE

1шт.

8

504096749

GASKET

1шт.

9

504065725

GASKET

1шт.

10

16586425

BOLT,M8 x 25mm

M8 x 25

2шт.

11

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

2шт.

12

504117010

BRACKET

1шт.

13

504117048

BRACKET

1шт.

14

16586225

BOLT,M8 x 16mm

6шт.

15

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8X1,25X18 mm

2шт.

16

4893206

PLUG,M18 x 1.5

M18X1,5

1шт.

17

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

D. 18X26 mm SP=1,5 mm

1шт.

18

16592625

SCREW,M8 x 80mm

M8X80 mm

2шт.

19

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25

4шт.

20

8039230

SEAL

2шт.

MAINTENANCE PART

1шт.

21

504114246

THERMOSTAT

2шт.

MAINTENANCE PART

1шт.
