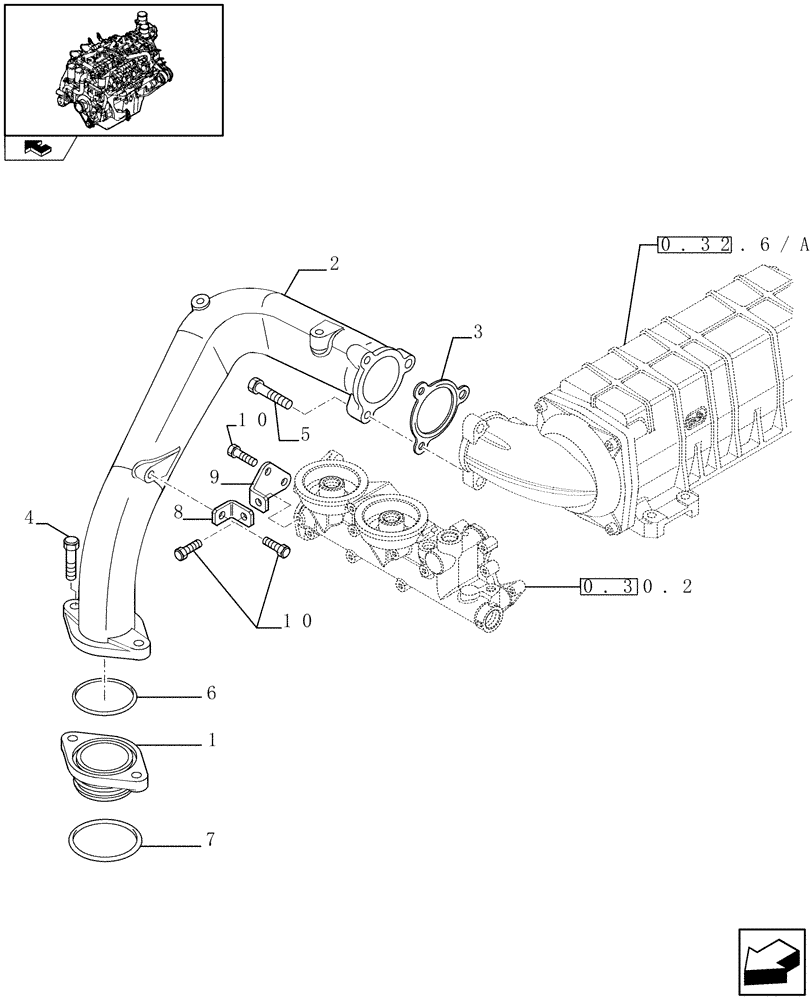

Запчасти Case IH FVAE2884X B200 (0.32.1/ A) - WATER LINES FROM RIGHT PUMP TO OIL HEAT EXCHANGER (504064802)

1

504055352

PIPE

1шт.

2

504064587

PIPE

1шт.

3

504039293

GASKET

1шт.

4

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

M8X30 mm

3шт.

6

17290581

O-RING,72.62mm ID x 2.34mm Width

D. 72,63X5,53 mm

1шт.

7

17296480

O-RING

D. 5,33X69,21 mm

1шт.

8

504099905

BRACKET

1шт.

9

504099909

BRACKET

1шт.

10

16586225

BOLT,M8 x 16mm

4шт.
