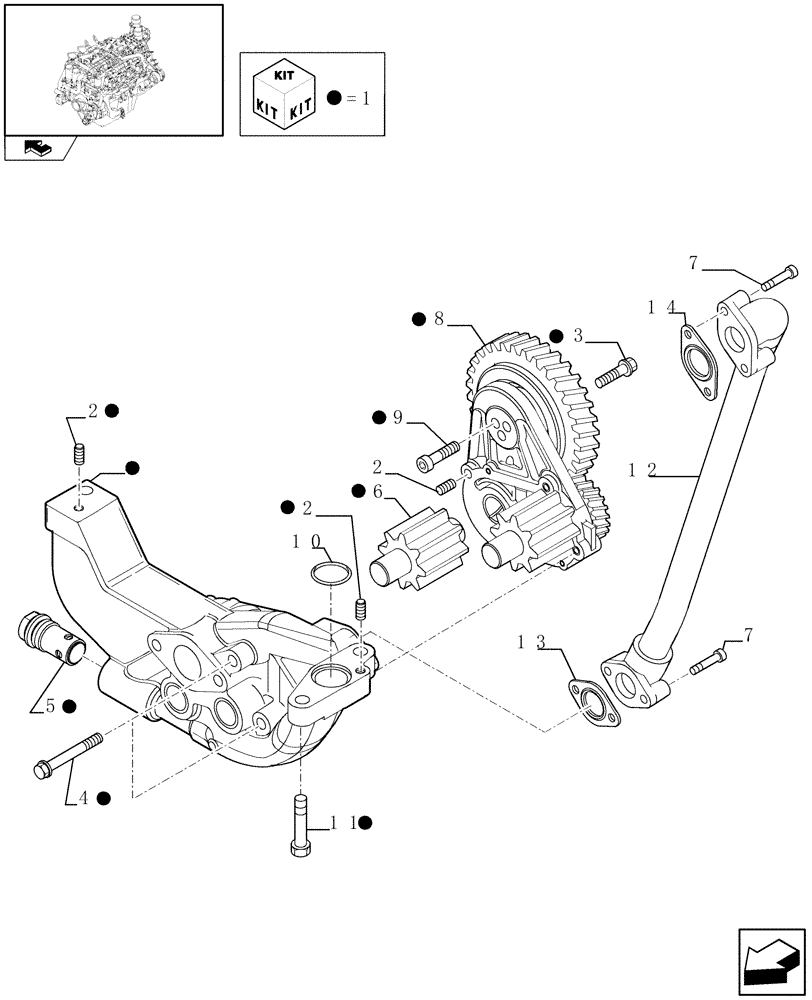

Запчасти Case IH FVAE2884X B200 (0.30.0) - PUMP, ENGINE OIL & RELATED PARTS (504064787)

1

504115282

ENGINE OIL PUMP

- ASSY

1шт.

2

10839610

DOWEL,M8 x 12mm

D. 8 mm

4шт.

3

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

2шт.

4

16592625

SCREW,M8 x 80mm

M8X80 mm

2шт.

5

500359679

SAFETY VALVE

M8X35 mm

1шт.

6

504038627

GEAR

1шт.

7

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

M8x20 mm

4шт.

8

504115287

COVER

1шт.

9

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8x30 mm

3шт.

11

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

12

504100178

PIPE

1шт.

13

504049043

GASKET

1шт.

14

504049044

GASKET

M8x30 mm

1шт.
