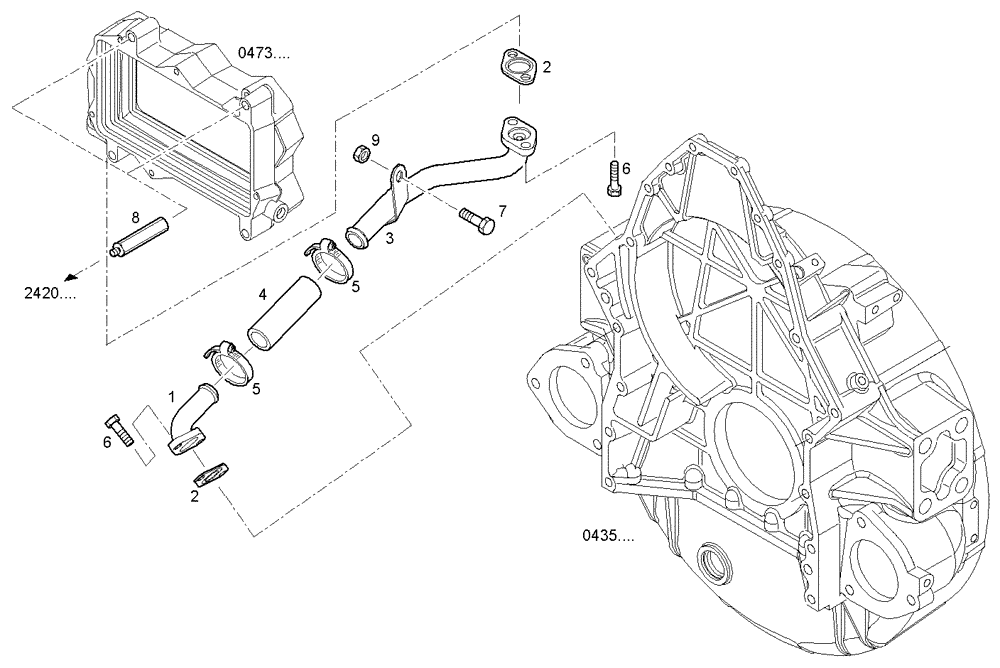

Запчасти Case IH FVAE2884X B200 (0473.002/02) - COALESCE. FILTER GROUP

1

504072528

PIPE

BREATHER PIPE

1шт.

2

504072992

GASKET

FLAT ENGINE GASKET

2шт.

3

504113915

PIPE

BREATHER PIPE

1шт.

4

504072530

RUBBER SLEEVE

RUBBER SLEEVE

1шт.

5

71404506

CLAMP,#30, 1.81"-2.06", T-Bolt

HOSE CLIP, m32-50

2шт.

6

16586425

BOLT,M8 x 25mm

HEXAGON BOLT, M8X25 MM

4шт.

7

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

1шт.

8

504049505

SPACER

SPACING BAR

4шт.

9

16984235

NUT

HEXAGON NUT, M8

1шт.
